WITTENSTEIN alpha RP 040S-MA2-27,5-3K1-2S Servo gearboxes
Manufacturer: WITTENSTEIN alpha
Type: Servo gearboxes

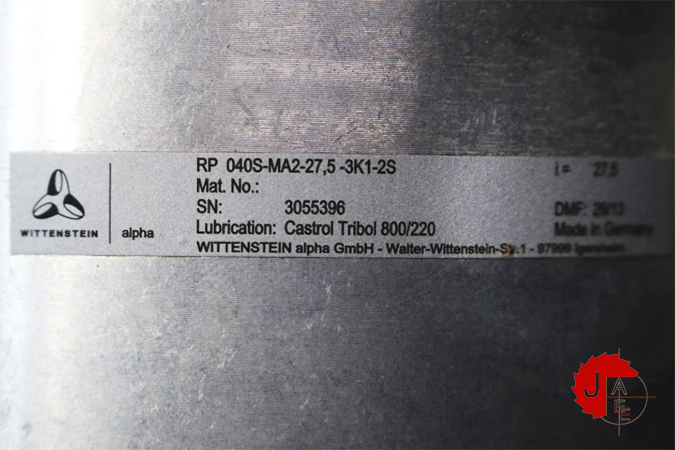

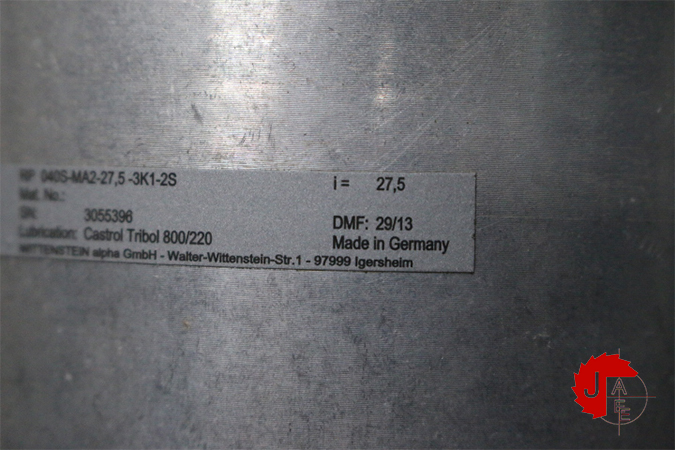

Model: RP 040S-MA2-27,5-3K1-2S

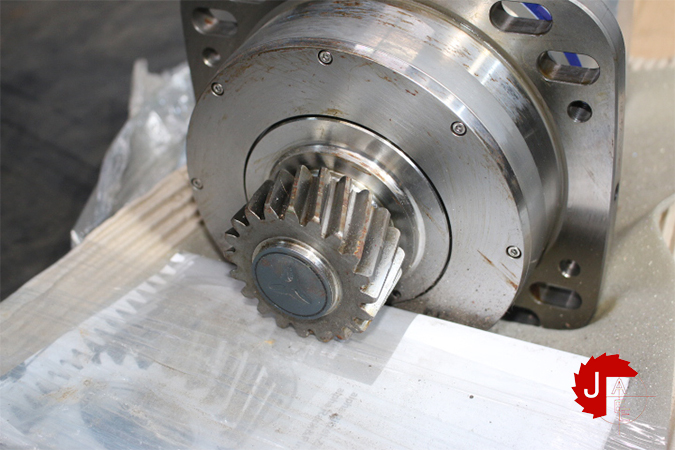

Planetary gearbox RP+ 040 MA with rack module 4 and pinion RMW module 4
Ratio 27.5
· Max. backlash ≤ 1-3 arcmin
· Max. torque 352-10450 Nm
· Further characteristics:
Flange with slotted holes, Food grade lubrication, Optimized mass
inertia
· Output shape:
Flange, System output
· System solutions:
Linear system (rack / pinion),
Servo actuato
| Manufacturer | alpha |
|---|---|
| Model | RP 040S-MA2-27,5-3K1-2S Servo gearboxes |
| Condition | New |
