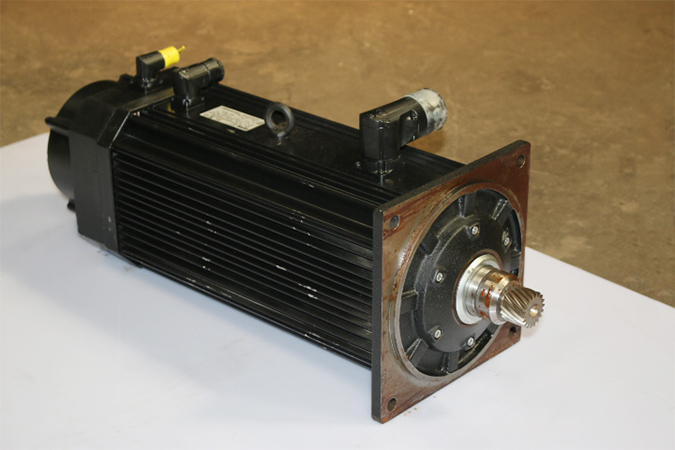

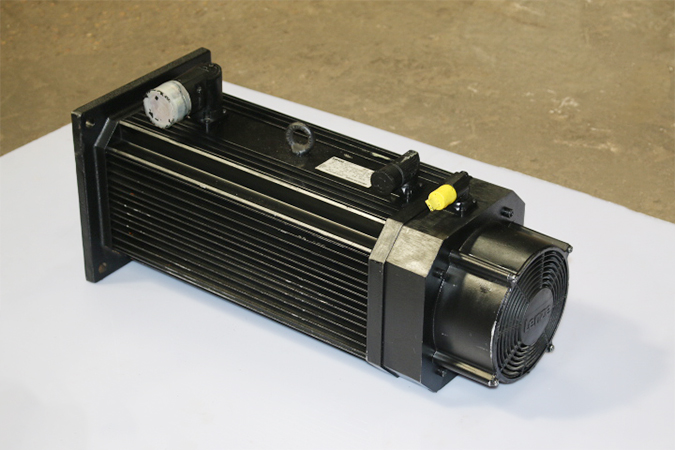

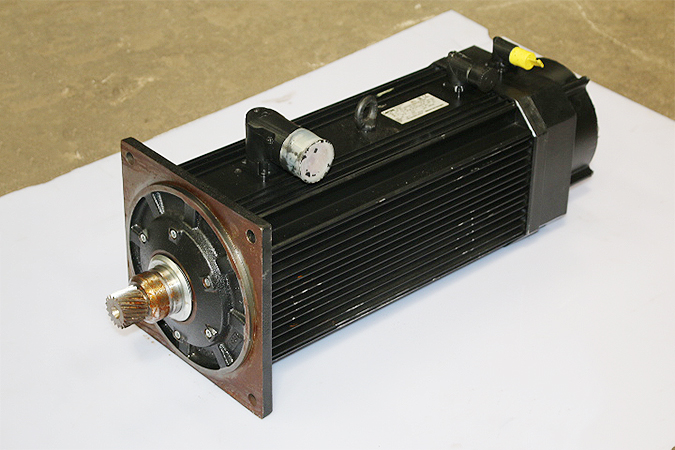

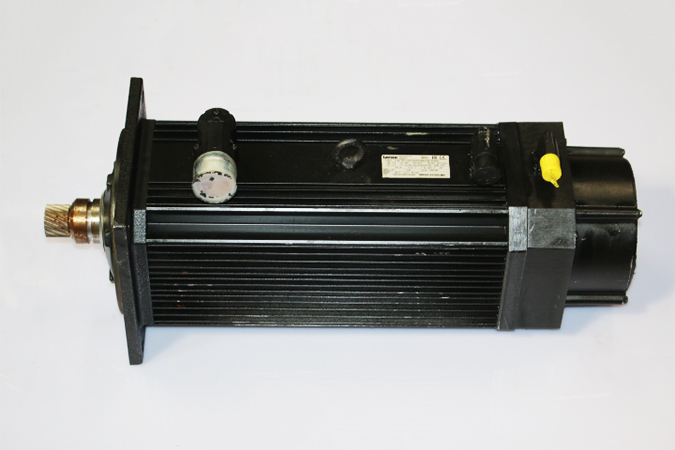

Lenze MCA 19S35-RS0P5-Z0G0-STBF10N-R0SU MCA asynchronous servo motors
Manufacturer: Lenze
Type: MCA asynchronous servo motors
Model: MCA 19S35-RS0P5-Z0G0-STBF10N-R0SU
Lenze MCA asynchronous servo motors
The MCA asynchronous servo motors are particularly suitable for environments which require compact units and a high construction-related operational reliability.
Highlights
Small volume
Low moments of inertia

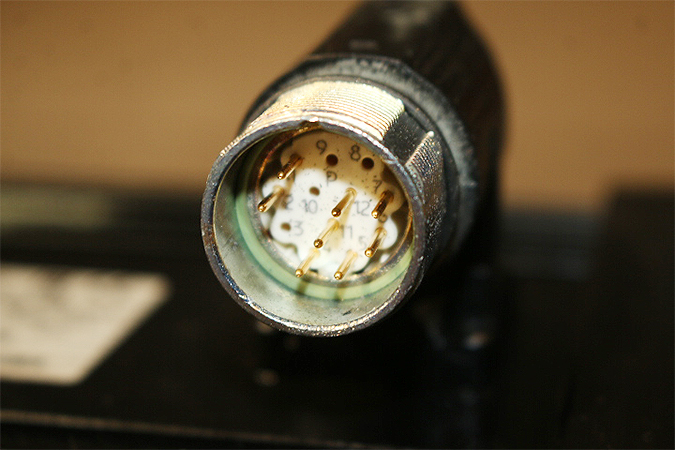

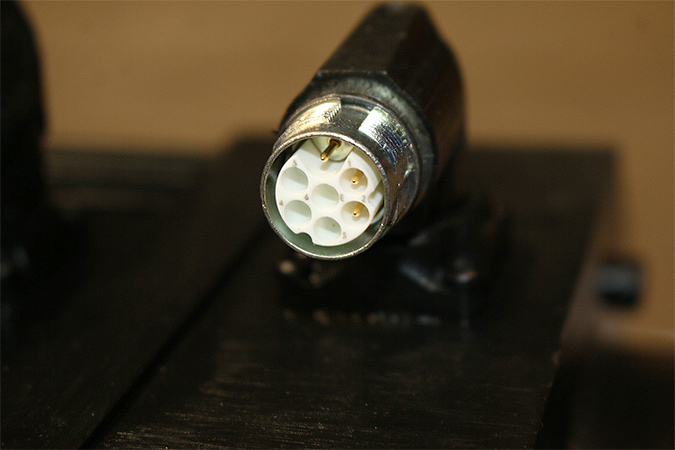

Plug connections for quick mounting and easy serviceability
Optimized for use as geared motors with g500, g7x0, and g8x0 gearboxes
Can be combined with i700 cabinet and i950 cabinet servo inverters

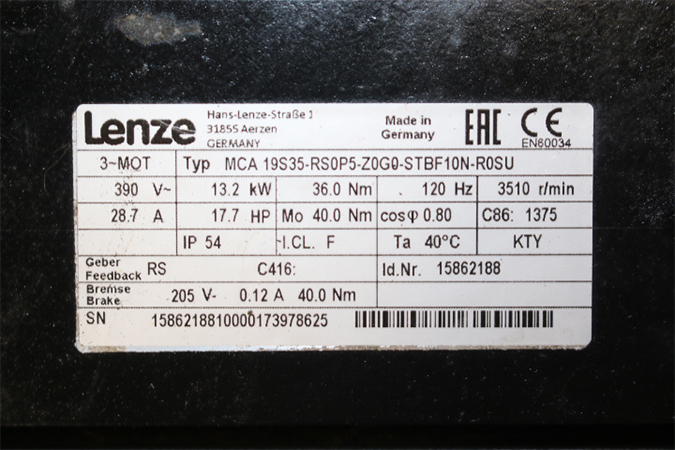

Motor Size: 19S
Rated Voltage [V]: 390
Rated Torque [Nm]: 36.0
Stall Torque [Nm]: 40.0
Rated Current [A]: 28.7
Rated Power [kW]: 13.2
Frequency [Hz]: 120
Rated power factor cos: 0.8
Nominal Speed [min-1]: 3510
Ambient Temperature [°C]: 40
Protection Class [IP]: 54
Insulation Class: F
Brake: 205V 0.12A 40.0N.m
| Manufacturer | LENZE |
|---|---|
| Model | MCA 19S35-RS0P5-Z0G0-STBF10N-R0SU MCA asynchronous servo motors |
| Condition | New |
