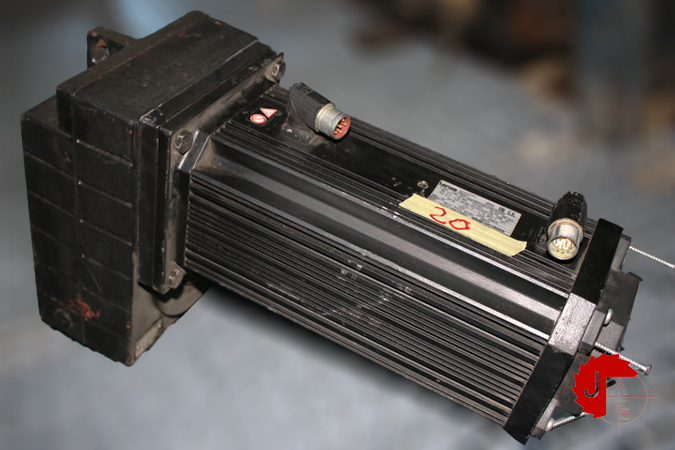

Lenze MCA 17N35-RS0P5-Z0F0-STBF10N-R0S0 Synchronous servo motors

Lenze MCA 17N35-RS0P5-Z0F0-STBF10N-R0S0 Synchronous servo motors

Manufacturer: Lenze
Type: Synchronous servo motors
Model: MCA 17N35-RS0P5-Z0F0-STBF10N-R0S0

Lenze MCA asynchronous servo motors

The MCA asynchronous servo motors are particularly suitable for environments which require compact units and a high construction-related operational reliability.

Highlights
Small volume
Low moments of inertia

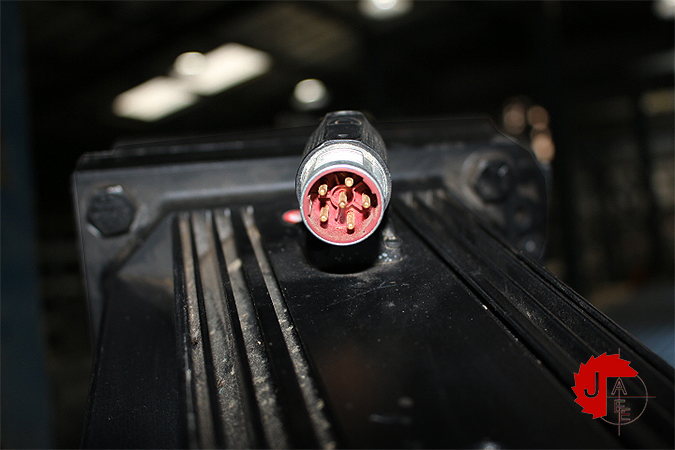

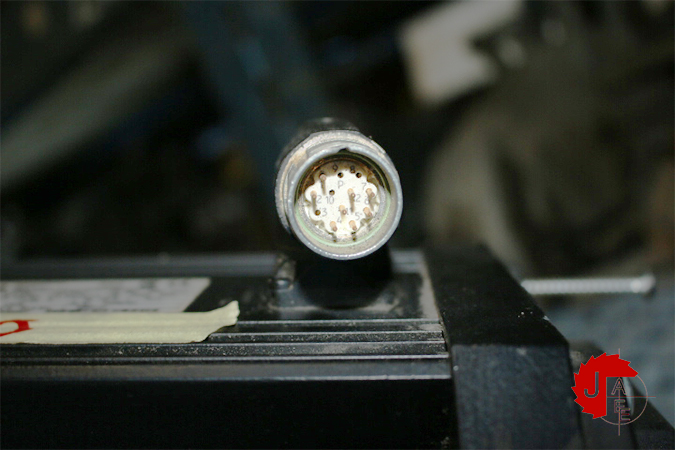

Plug connections for quick mounting and easy serviceability

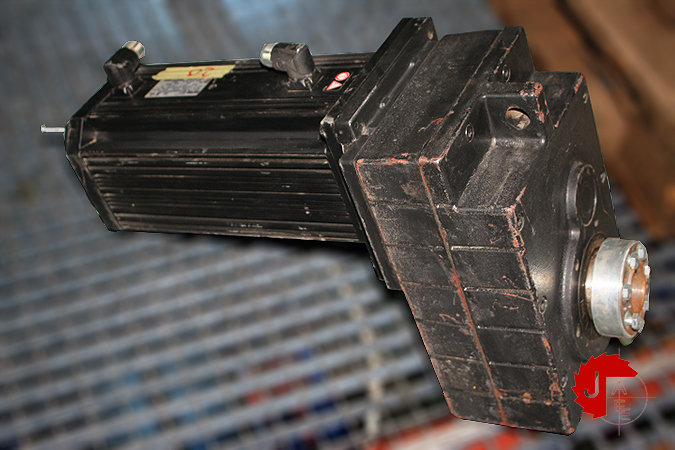

Optimized for use as geared motors with g500, g7x0, and g8x0 gearboxes
Can be combined with i700 cabinet and i950 cabinet servo inverters

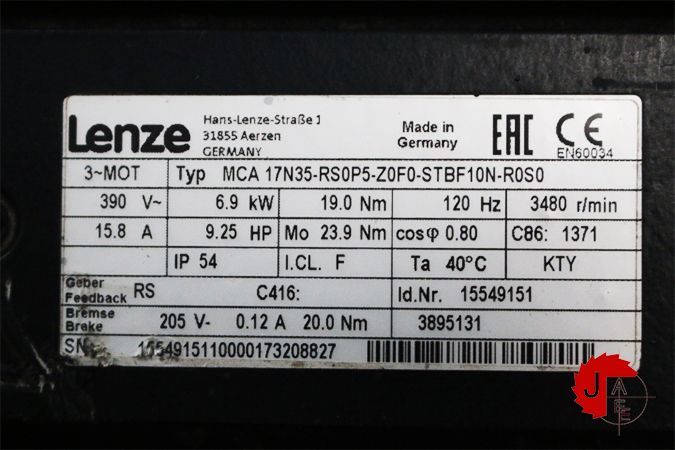

Motor Size: 17N
Rated Voltage [V]: 390
Rated Torque [Nm]: 19.0
Stall Torque [Nm]: 23.9
Rated Current [A]: 15.8
Rated Power [kW]: 6.9
Frequency [Hz]: 120
Rated power factor cos: 0.8
Nominal Speed [min-1]: 3480
Ambient Temperature [°C]: 40
Protection Class [IP]: 54
Insulation Class: F
Brake: 205V 0.12A 40.0N.m
