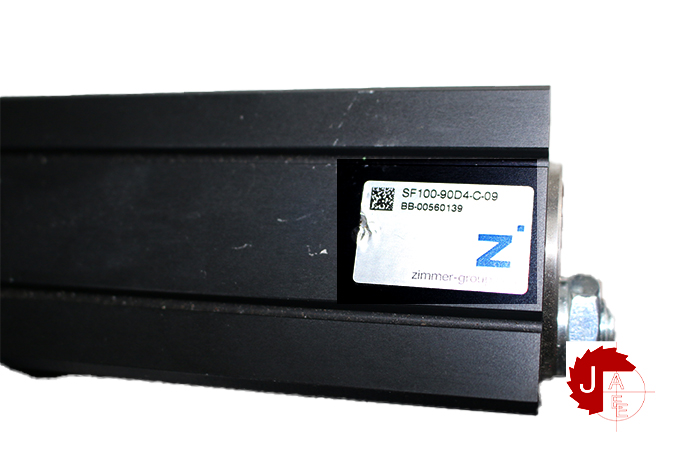

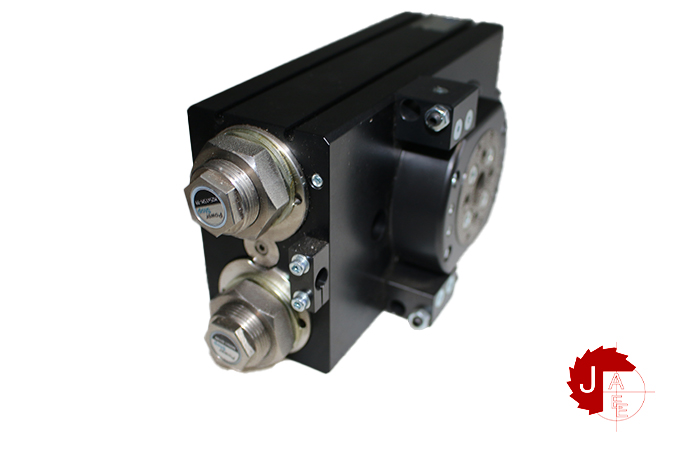

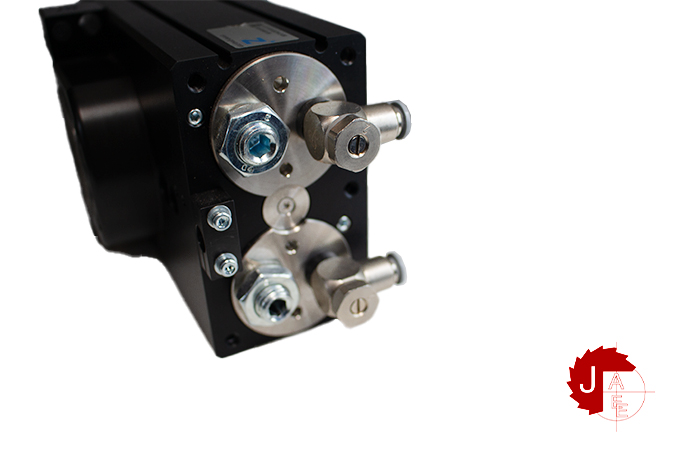

ZIMMER GROUP  SF100-90D4-C-09 Flat Swivel Unit

SKU: 0995781 Category: Tags: ,

Only 1 item left.

ZIMMER GROUP  SF100-90D4-C-09

Manufacturer: ZIMMER GROUP
Type: Flat Swivel Unit
Model:SF100-90D4-C-09

Swivel angle 90 [°]
Torque 15 [Nm]
Pneumatic energy transfer 4 [Quantity]
Swivel angle regulable +/- 3 [°]
Passage bore Ø 15 [mm]
Axial bearing load 2500 [N]
Radial bearing load 155 [Nm]
Repetition accuracy +/- 0.01 [°]
Operating pressure min. 3 [bar]
Operating pressure max. 8 [bar]
Nominal operating pressure 6 [bar]
Operating temperature min. 5 [°C]
Operating temperature max. +80 [°C]
Air volume per cycle 103 [cm³]
Protection to IEC 60529 IP64
Weight 4.5 [kg]

Manufacturer ZIMMER GROUP
Model SF100-90D4-C-09 Flat Swivel Unit
Condition NEW/OUT BOX
