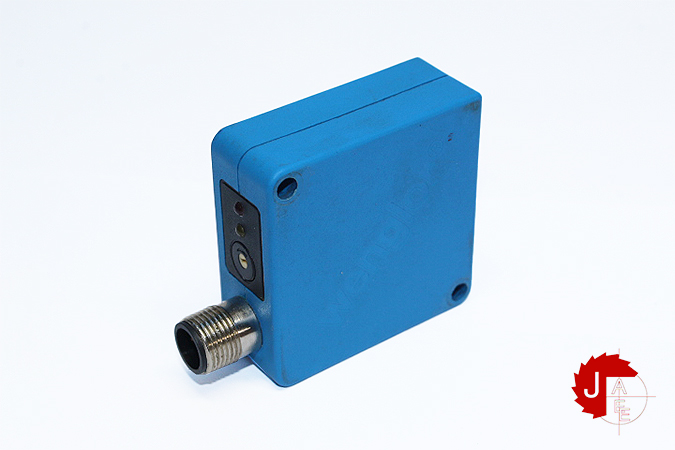

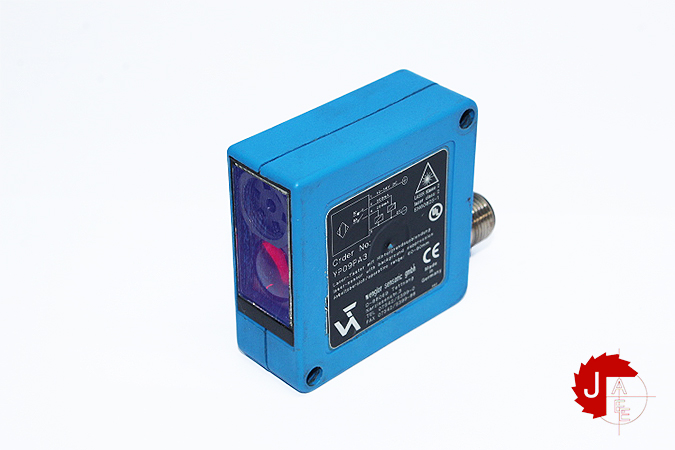

Wenglor YP09PA3 Laser Distance Sensor Triangulation

Wenglor YP09PA3 Laser Distance Sensor Triangulation

Manufacturer: Wenglor
Type: Laser Distance Sensor Triangulation

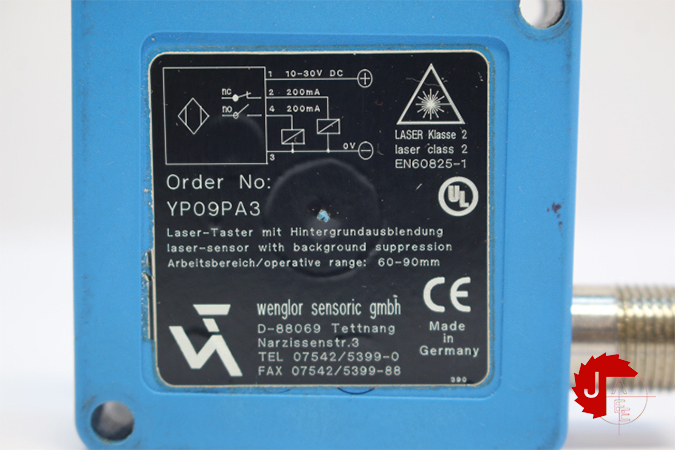

Model:  YP09PA3

Range 100 mm
Setting Range 60 … 100 mm
Switching Hysteresis < 200 µm
Light Source Laser (red)
Wavelength 660 nm
Service Life (T = +25 °C) 100,000 h
Laser Class (EN 60825-1) 2
Max. Ambient Light 10,000 Lux
Light Spot Diameter 0.8 mm
Focus Distance 110 mm

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 1,500 Hz
Response Time 333 µs
Temperature Drift < 15 µm/K
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Setting Method Potentiometer
Housing Material Plastic, PBT
Full Encapsulation yes
Degree of Protection IP67

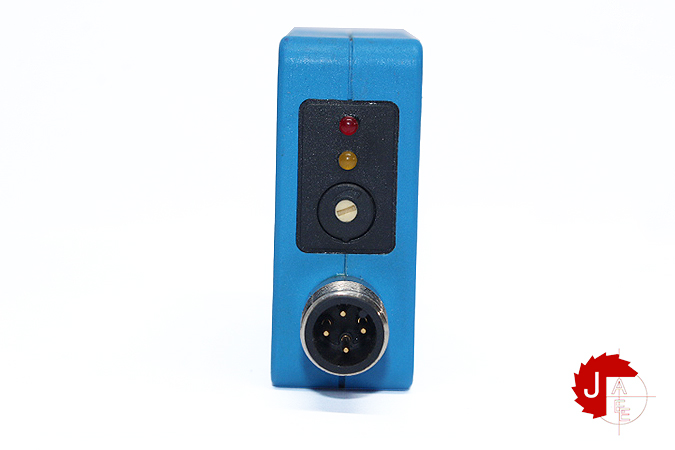

Connection M12 × 1; 4-pin
Optic Cover Glass

PNP NC, PNP NO yes
