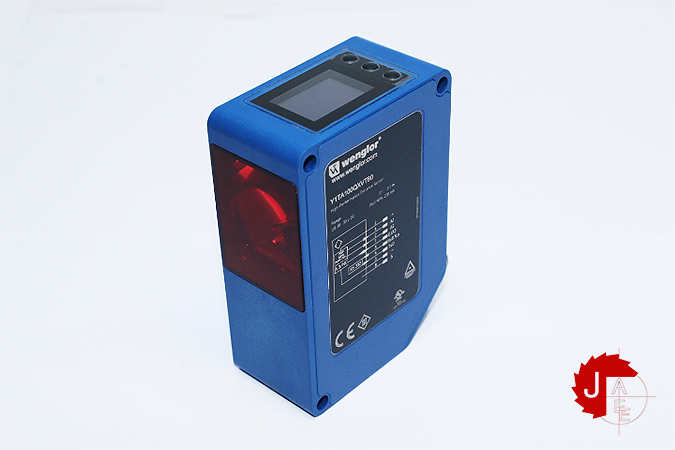

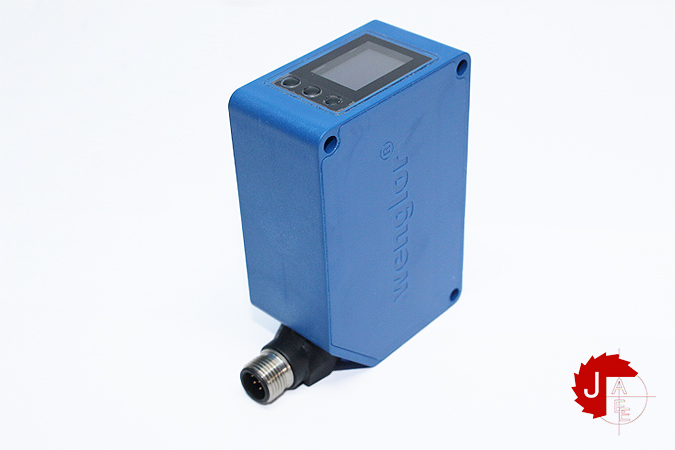

Name: Wenglor Y1TA100QXVT80 Laser Distance Sensor Time of Flight
SKU: 0999735
Availability: InStock

Wenglor Y1TA100QXVT80 Laser Distance Sensor Time of Flight

Manufacturer: Wenglor
Type: Laser Distance Sensor Time of Flight
Model: Y1TA100QXVT80

Working Range 0.1 … 10.1 m

Measuring Range 10 m

Resolution 1 … 12 mm

Linearity 0.2 %

Linearity Deviation 20 mm

Switching Hysteresis 3 … 20 mm

Light Source Laser (red)

Wavelength 660 nm

Supply Voltage 18 … 30 V DC

Current Consumption (Ub = 24 V) < 100 mA

Switching Frequency 50 Hz

Measuring Rate 1 … 100 /s

On-/Off-Delay 0 … 10,000 ms

Temperature Drift (-10 °C < Tu < 50 °C) < 0.2 mm/K

Temperature Drift (Tu < -10 °C, Tu > 50 °C) < 0.4 mm/K

Temperature Range -25 … 60 °C

Number of Switching Outputs 3

Switching Output Voltage Drop < 2.5 V

Switching Output/Switching Current 200 mA

Analog Output 0…10 V

Short Circuit Protection yes

Reverse Polarity and Overload Protection yes

Interface RS-232

Protection Class III

Degree of Protection IP68

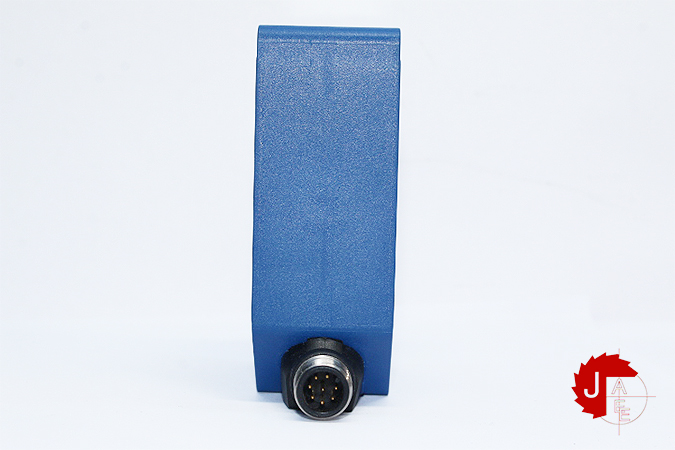

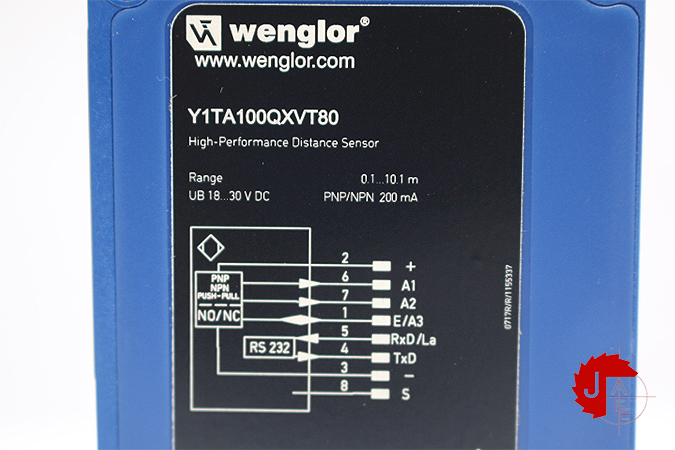

Connection M12 × 1; 8-pin

Error Output yes

PNP NO yes

Analog Output yes

RS-232 Interface yes

Analog output 0…10 V

4…20 mA

Manufacturer	WENGLOR
Model	Y1TA100QXVT80 Laser Distance Sensor Time of Flight
Condition	New
