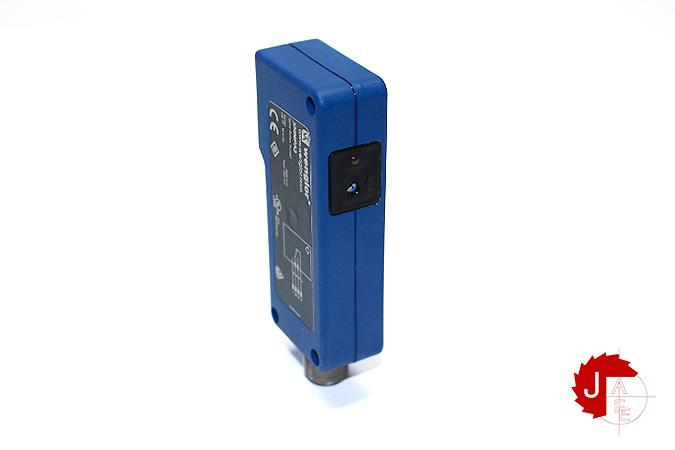

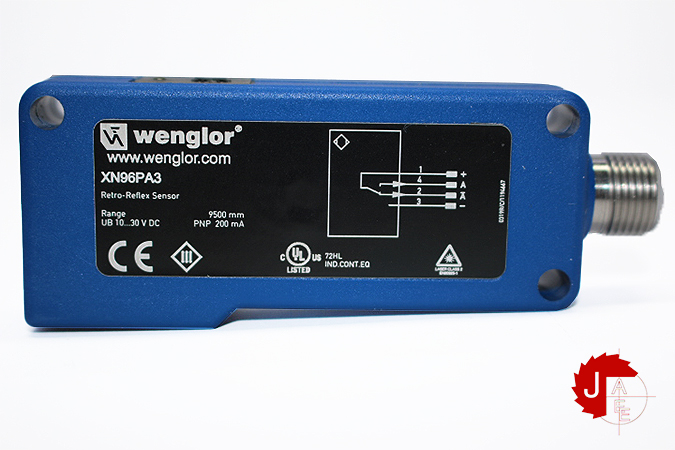

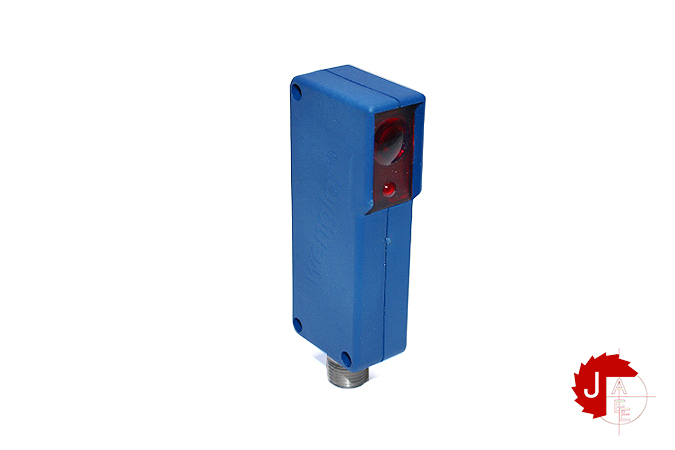

WENGLOR XN96PA3 Retro-Reflex Sensor Universal

Manufacturer: WENGLOR
Type: Retro-Reflex Sensor Universal
Model: XN96PA3

Range 9,500 mm
Reference Reflector/Reflector Foil RQ100BA
Min. Distance to Reflector 0 mm
Smallest Recognizable Part > 250 µm
Switching Hysteresis < 15 %
Light Source Laser (red)

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 2,500 Hz
Response Time 200 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output 50 µA

Setting Method Potentiometer
Housing Material Plastic
Full Encapsulation yes
Degree of Protection IP67

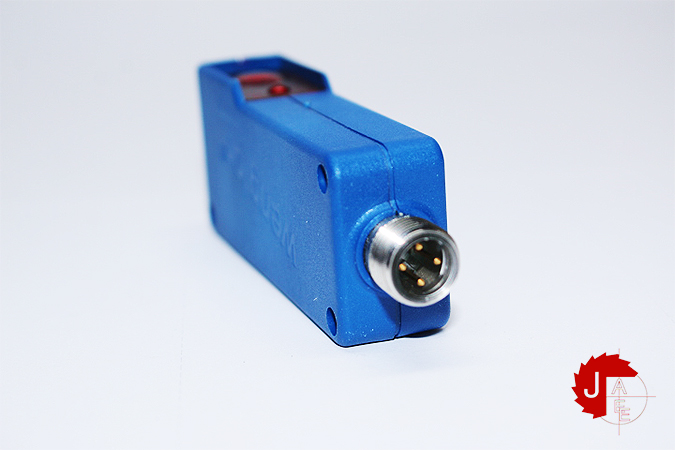

Connection M12 × 1; 4-pin

Output
PNP NC, PNP NO yes
Adjustable parameters Circuit NC / NC+NO / NO
