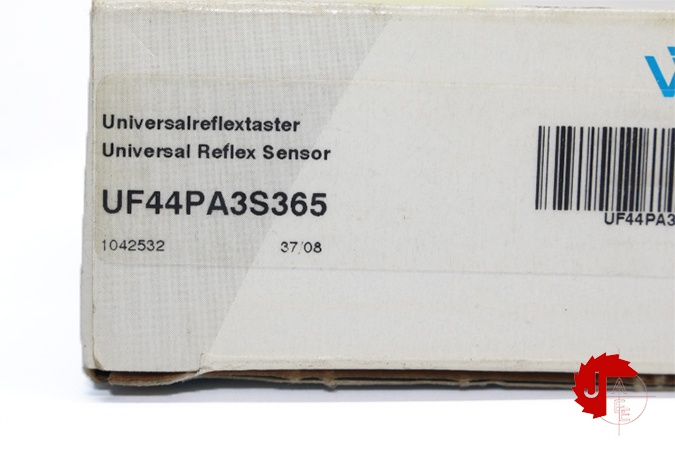

Wenglor UF44PA3S365 Fiber-optic amplifier

Wenglor UF44PA3S365 Fiber-optic amplifier

Manufacturer: Wenglor
Type: Fiber-optic amplifier
Model: UF44PA3S365

Range 400 mm
Light Source Blue Light
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 150 Hz
Response Time 3,300 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Full Encapsulation yes
Degree of Protection IP65

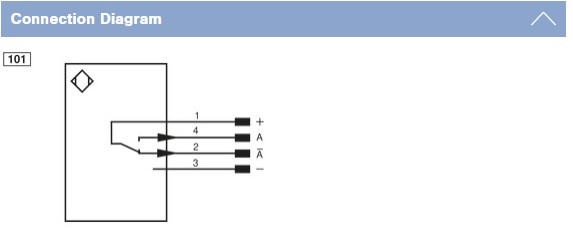

Connection M12 × 1; 4-pin
PNP NC, PNP NO yes
