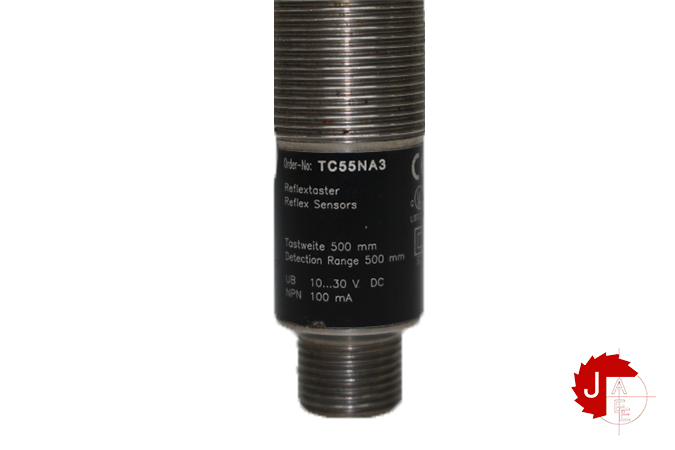

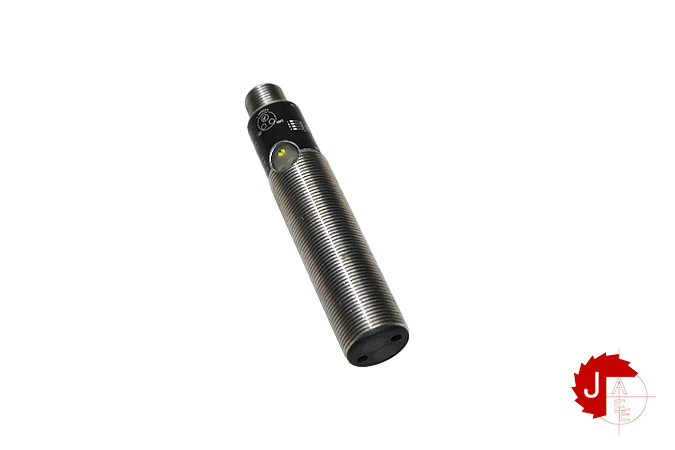

Wenglor TC55NA3 Reflex Sensor Energetic

Manufacturer: wenglor
Type: Reflex Sensor Energetic
Model: TC55NA3

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 2 kHz
Response Time 250 µs
Temperature Drift < 10 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
NPN Switching Output/Switching Current 100 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Degree of Protection IP67
