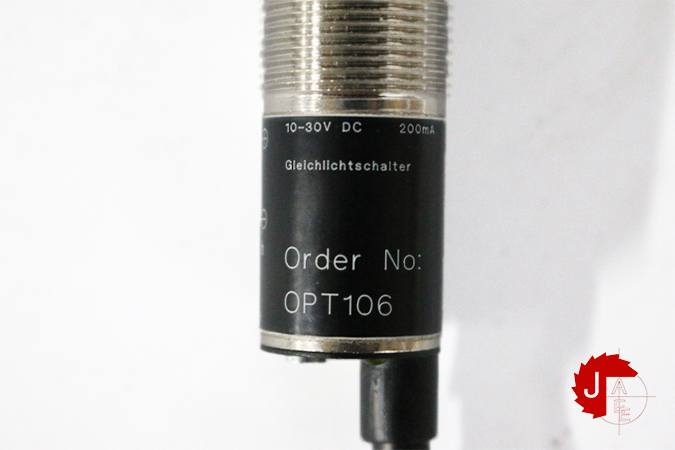

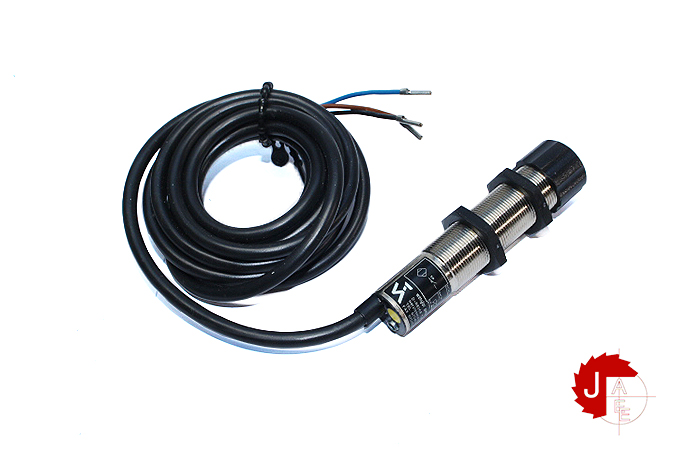

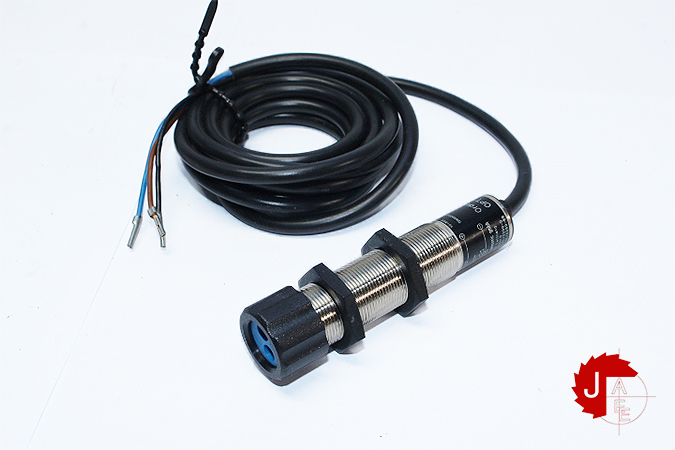

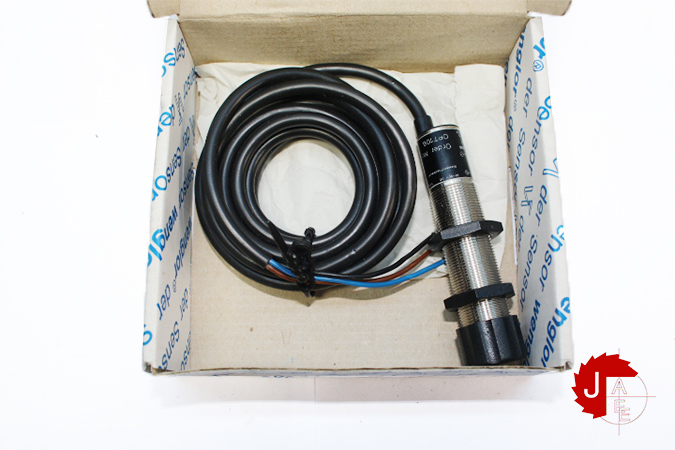

Wenglor OPT106 Fiber-optic amplifier Continuous Light Sensor

Wenglor OPT106 Fiber-optic amplifier Continuous Light Sensor

Manufacturer: Wenglor
Type: Fiber-optic amplifier Continuous Light Sensor
Model: OPT106

Minimum quantity of light 10 Lux

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 15 mA
Switching Frequency 300 Hz
Response Time 1,660 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III

Full Encapsulation yes
Degree of Protection IP65
Connection Cable, 3-wire, 2 m

PNP NO yes
