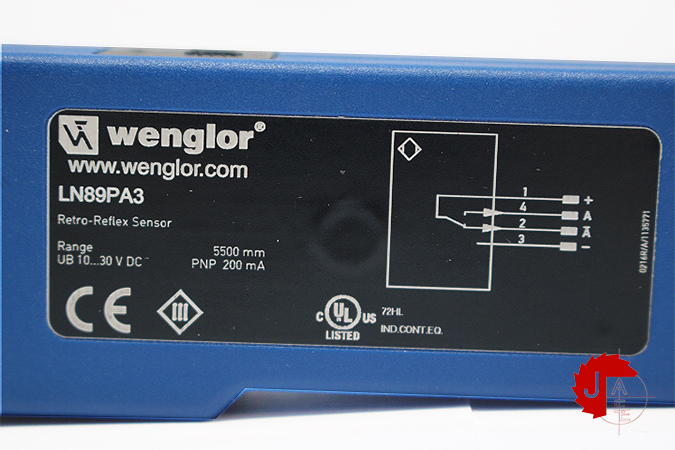

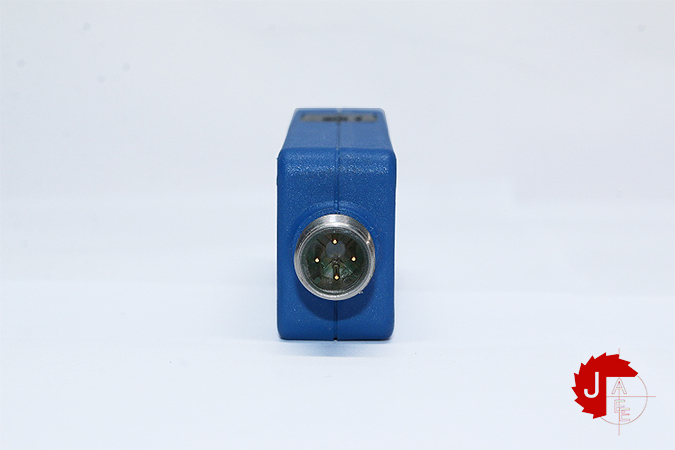

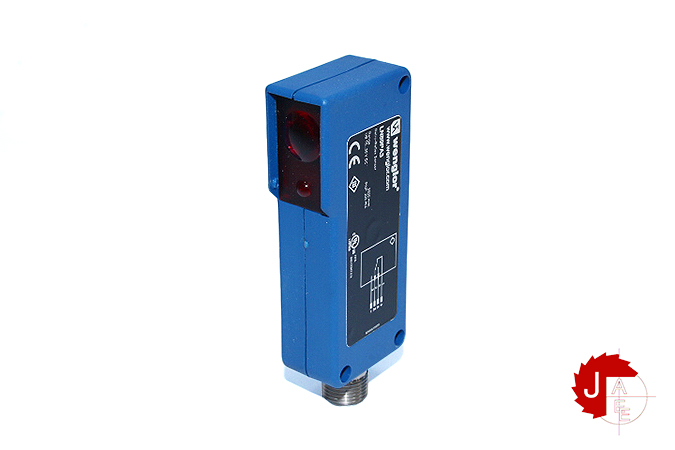

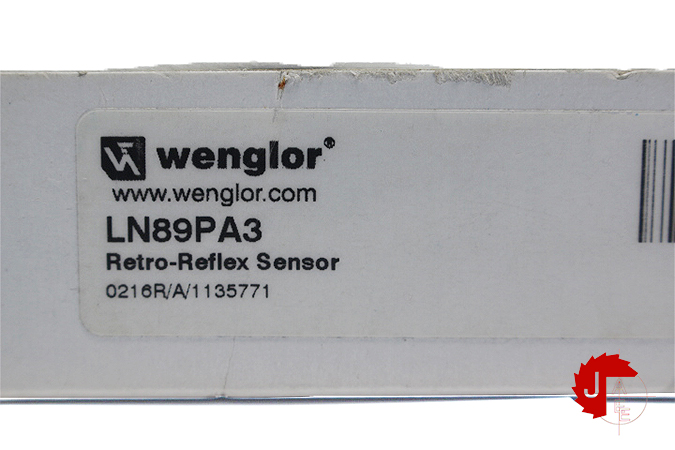

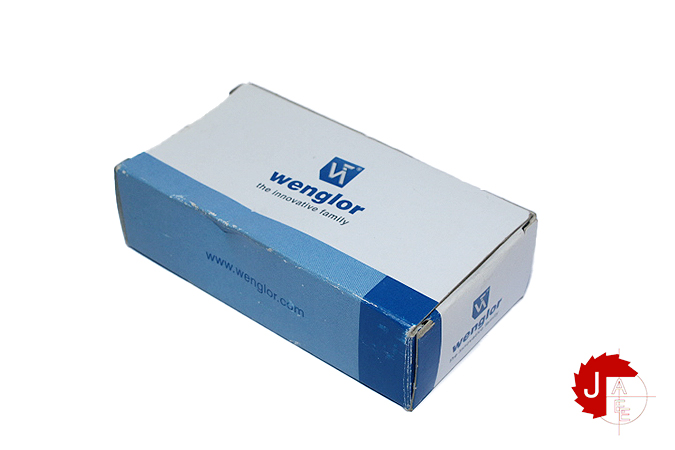

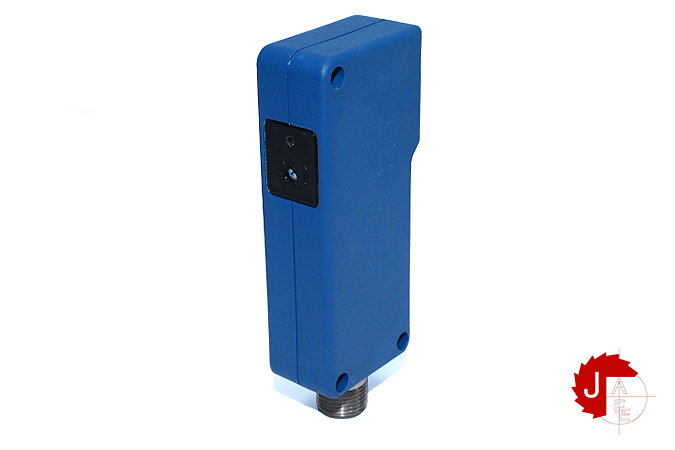

Wenglor LN89PA3 Retro-Reflex Sensor Universal
Manufacturer: Wenglor
Type: Retro-Reflex Sensor Universal
Model: LN89PA3
Range 5,500 mm
Light Source Red Light
Polarization Filter yes
Single-Lens Optic yes
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
Temperature Drift < 10 %
Temperature Range –10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Protection Class III
Degree of Protection IP67
PNP NC, PNP NO yes
Circuit NC
NC+NO
NO
| Manufacturer | WENGLOR |
|---|---|
| Model | LN89PA3 Retro-Reflex Sensor Universal |
| Condition | New |
