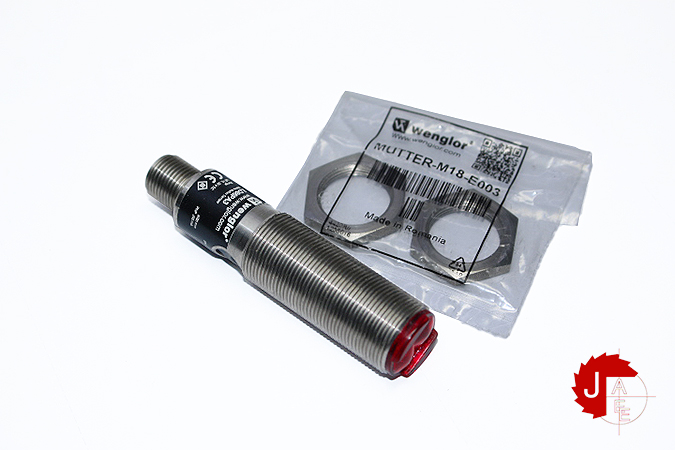

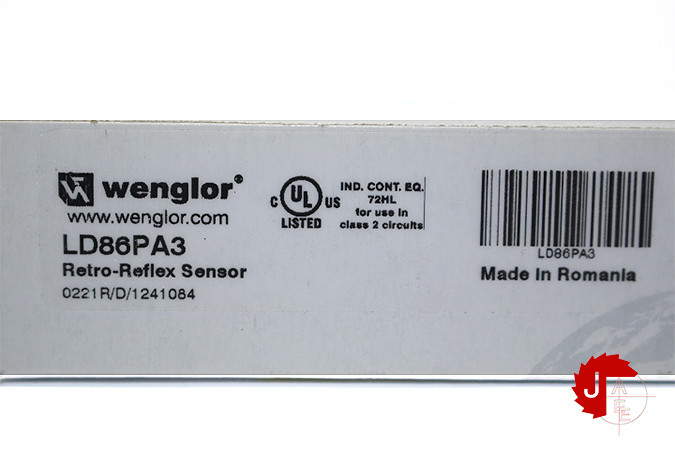

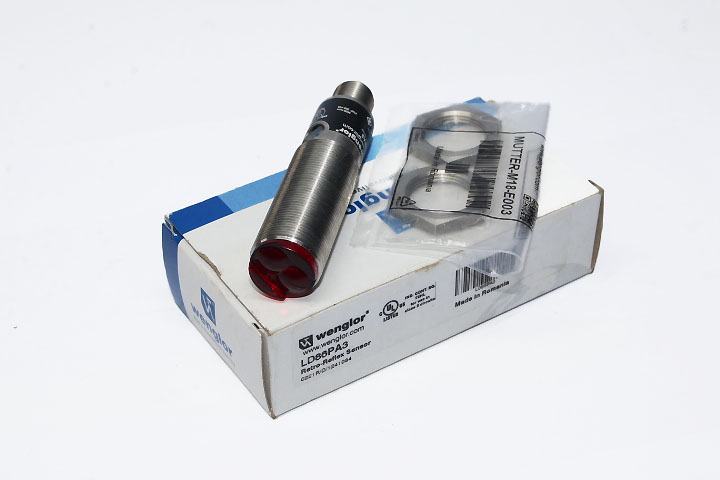

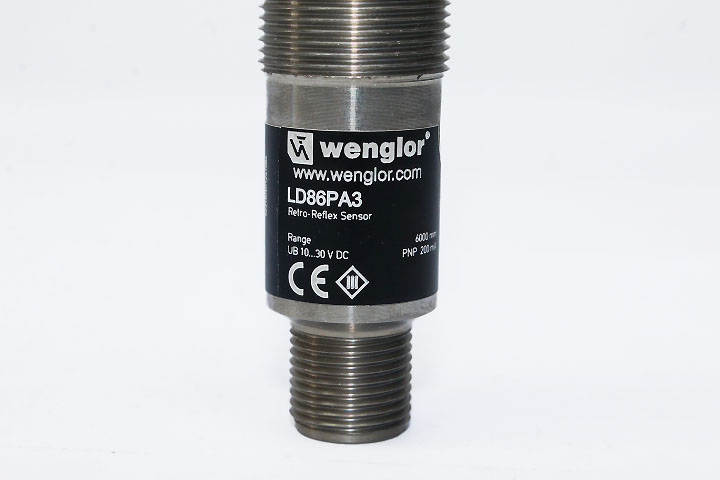

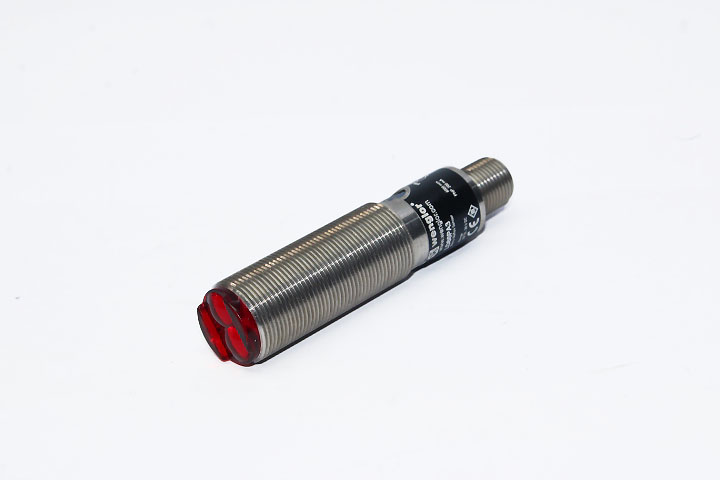

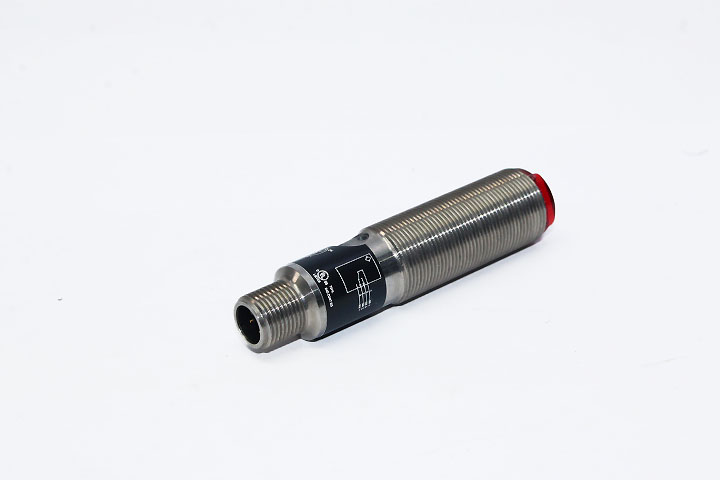

WENGLOR LD86PA3 Retro-Reflex Sensor Universal
Range 6,000 mm
Reference Reflector/Reflector Foil RQ100BA
Supply Voltage 10 … 30 V DC
Setting Method Potentiometer
Connection M12 × 1; 4-pin.
Output
PNP NC, PNP NO yes
Adjustable parameters
Circuit NC / NC+NO / NO
Manufacturer: WENGLOR
Type: Retro-Reflex Sensor Universal
Model: LD86PA3
Range 6,000 mm
Reference Reflector/Reflector Foil RQ100BA
Switching Hysteresis < 15 %
Light Source Red Light
Electrical Data
Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 1 kHz
Response Time 500 µs
Temperature Drift < 10 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V

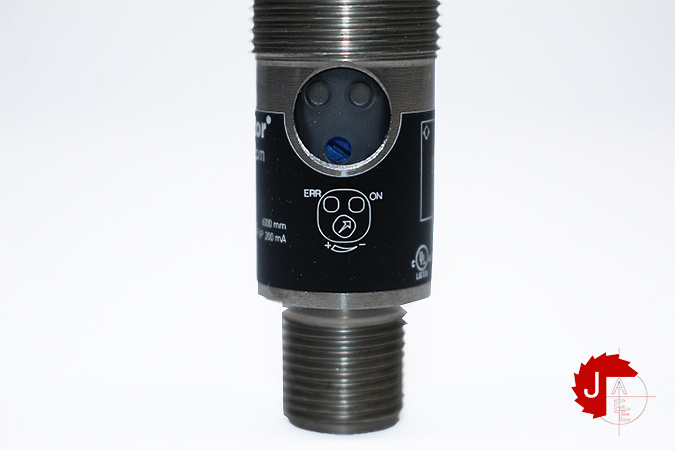

Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67

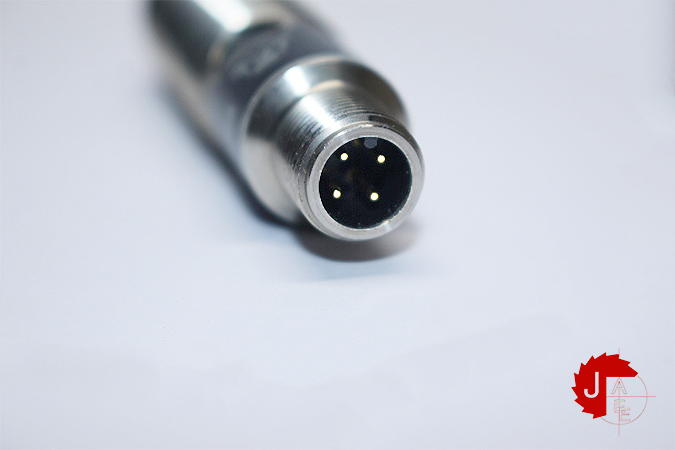

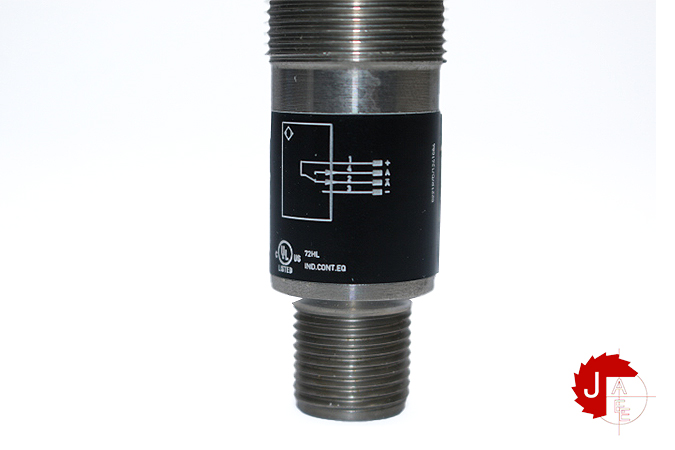

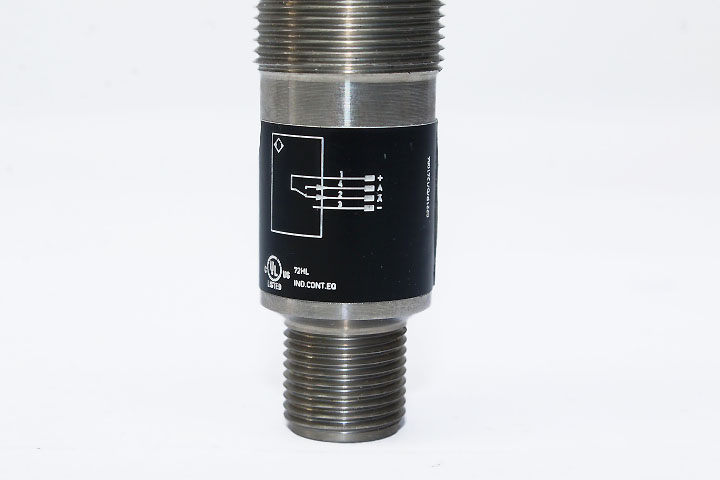

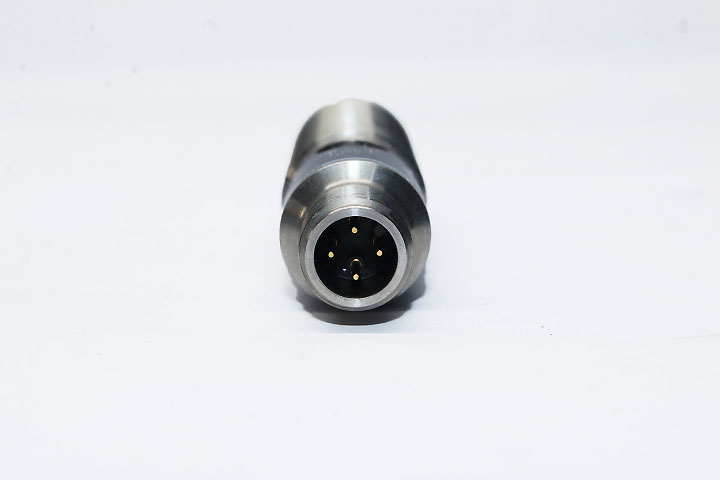

Connection M12 × 1; 4-pin.
Output
PNP NC, PNP NO yes
Adjustable parameters
Circuit NC / NC+NO / NO
| Manufacturer | WENGLOR |
|---|---|
| Model | D86PA3 Retro-Reflex Sensor Universal |
| Condition | New |
