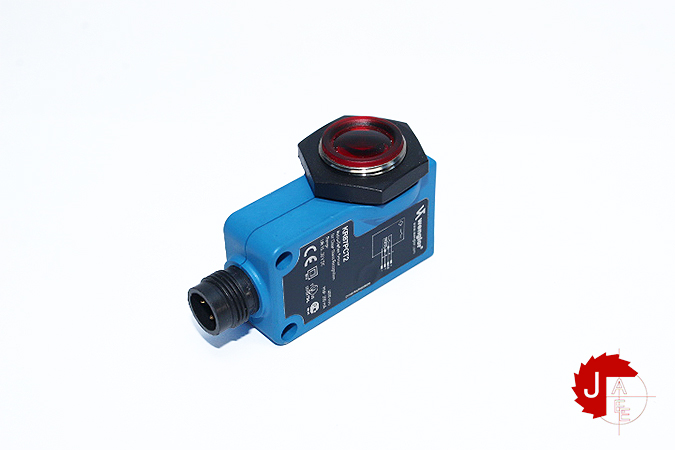

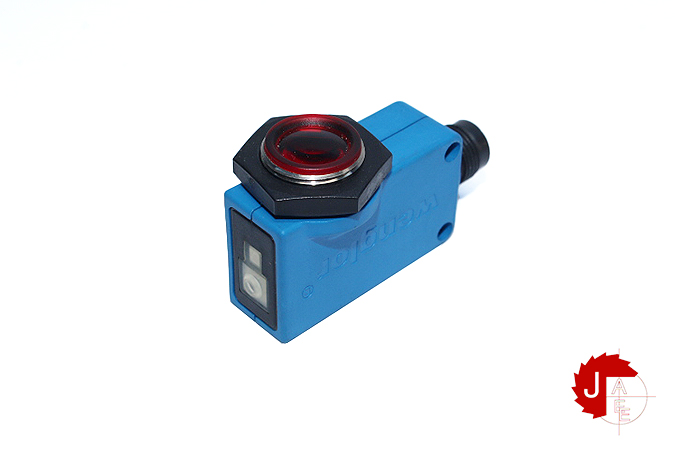

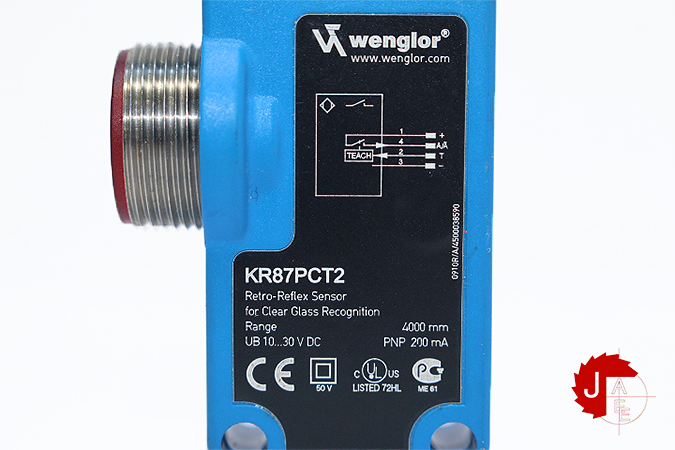

Wenglor KR87PCT2 Retro-Reflex Sensor for Transparent Objects

Wenglor KR87PCT2 Retro-Reflex Sensor for Transparent Objects

Manufacturer: Wenglor
Type: Retro-Reflex Sensor for Transparent Objects
Model: KR87PCT2

Range 4,000 mm
Single-Lens Optic yes

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 40 mA
Switching Frequency 2 kHz
Response Time 250 µs
On-/Off-Delay (RS-232) 0 … 5 s
Temperature Drift < 5 %
Temperature Range -10 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA
Residual Current Switching Output < 50 µA
Short Circuit Protection yes
Reverse Polarity Protection yes
Overload Protection yes
Lockable yes
Teach Mode NT, MT
Protection Class III

Setting Method Teach-In
Housing Material Plastic, PBT
Full Encapsulation yes
Degree of Protection IP67

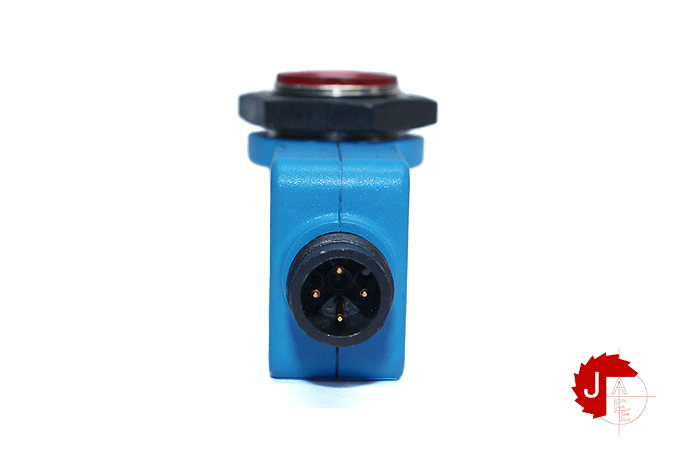

Connection M12 × 1; 4-pin
PNP NO yes
RS-232 with Adapterbox yes
