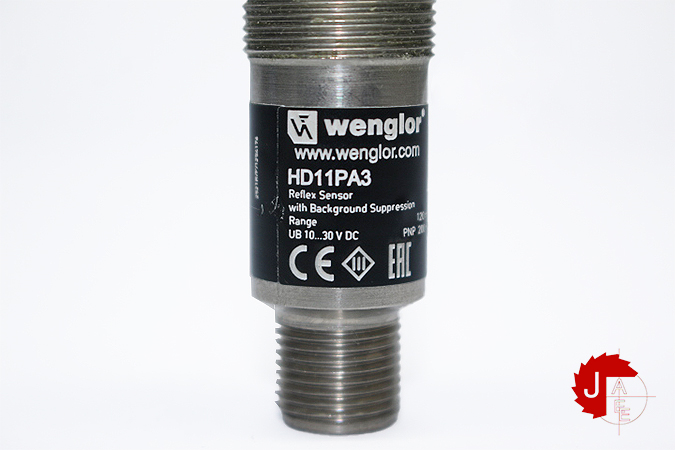

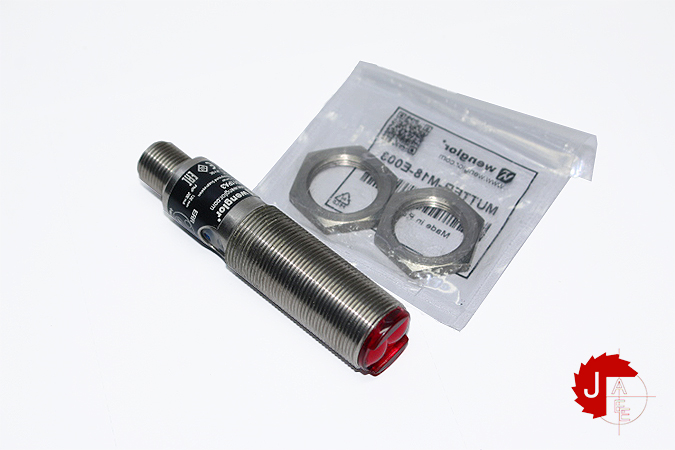

WENGLOR HD11PA3 Reflex Sensor with Background Suppression

Manufacturer: WENGLOR
Type: Reflex Sensor with Background Suppression
Model: HD11PA3

Range 120 mm
Setting Range 35 … 120 mm
Switching Hysteresis < 5 %
Light Source Red Light

Supply Voltage 10 … 30 V DC
Current Consumption (Ub = 24 V) < 30 mA
Switching Frequency 600 Hz
Response Time 833 µs
Temperature Drift < 5 %
Temperature Range -25 … 60 °C
Switching Output Voltage Drop < 2.5 V
PNP Switching Output/Switching Current 200 mA

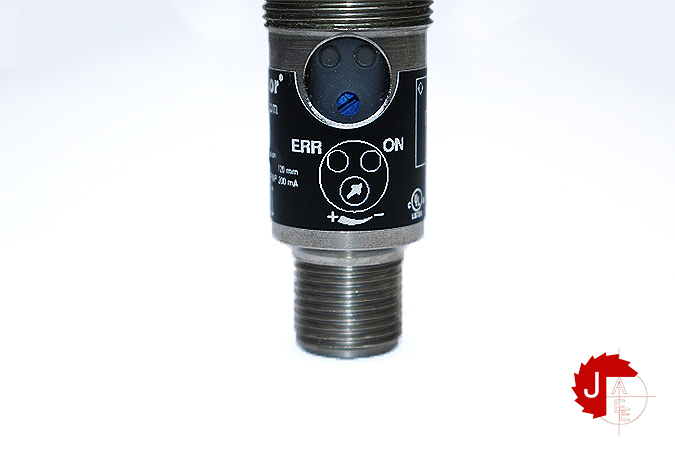

Setting Method Potentiometer
Housing Material Stainless Steel
Full Encapsulation yes
Degree of Protection IP67

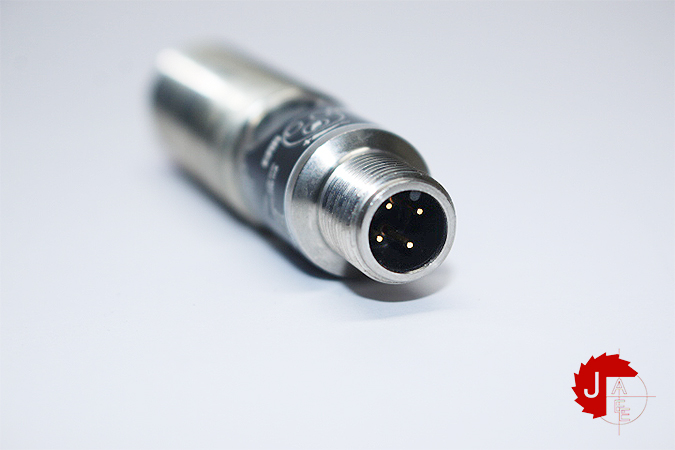

Connection M12 × 1; 4-pin

Output / PNP NC, PNP NO
Adjustable parameters
Circuit NC / NC+NO / NO
