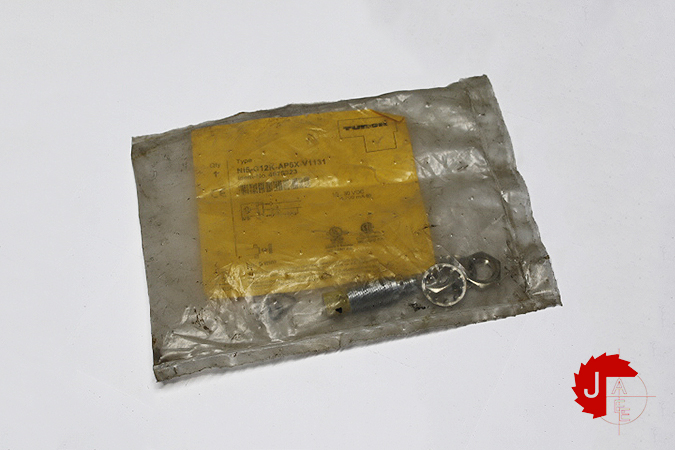

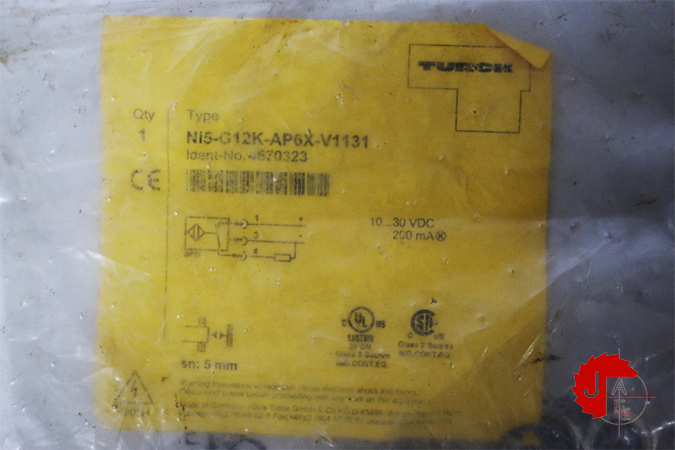

TURCK Ni5-G12K-AP6X-V1131 Inductive Sensor

Manufacturer: TURCK
Type: Inductive Sensor
Model: Ni5-G12K-AP6X-V1131

General data
Rated switching distance 5 mm
Mounting conditions Non-flush
Secured operating distance ≤ (0.81 × Sn) mm
Correction factors St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4
Repeat accuracy ≤ 2 % of full scale
Temperature drift ≤ ±10 %
Hysteresis 3…15  %

Electrical data
Operating voltage 10…30  VDC
Residual ripple ≤ 10 % Uss
DC rated operational current ≤ 200 mA
No-load current 15  mA
