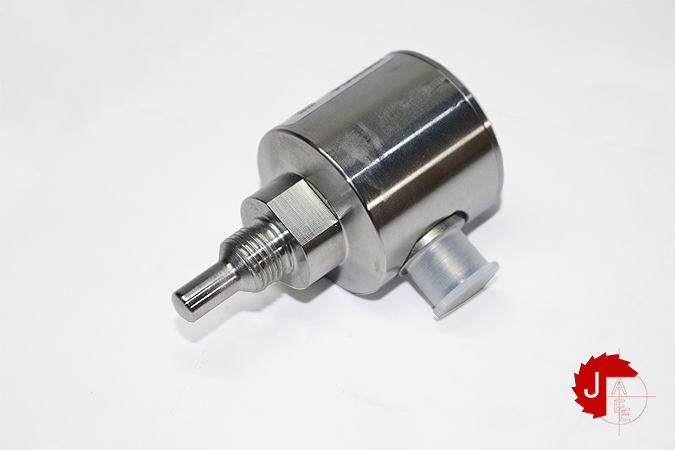

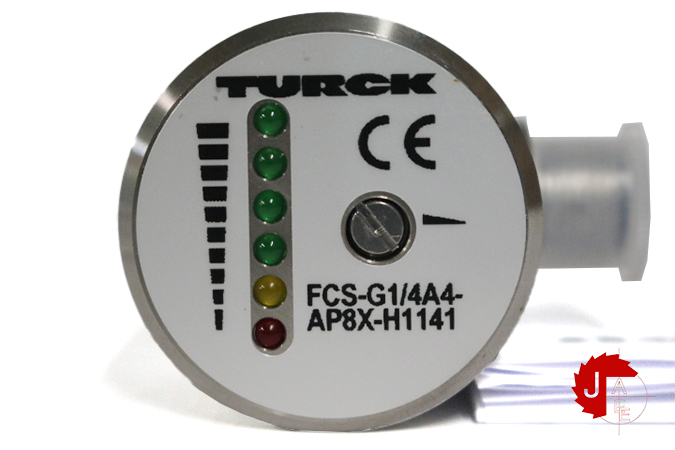

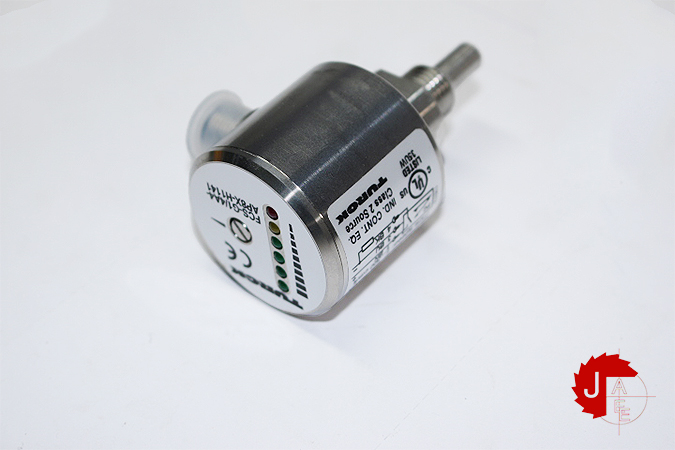

TURCK FCS-G1/4A4-AP8X-H1141 Flow Monitoring

Manufacturer: TURCK
Type: Flow Monitoring
Model: FCS-G1/4A4-AP8X-H11413

Flow Monitoring

Immersion Sensor with Integrated Processor

Function Flow monitoring
Design Immersion
Process connection G 1/4”
Medium liquids
Detection type Calorimetric
Operating voltage 19.2…28.8 VDC

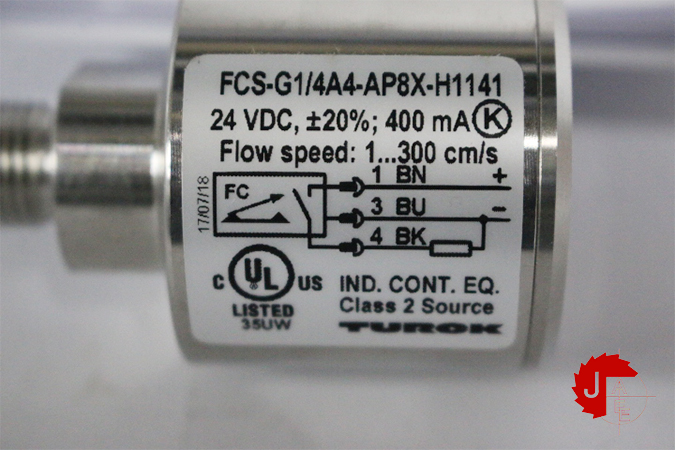

Output function NO contact, PNP

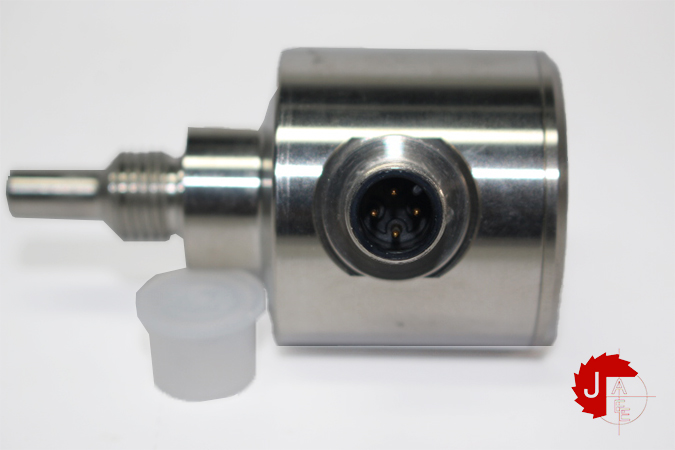

Electrical connection Connector, M12 × 1
Sensor material Stainless steel
Housing material Stainless steel, 1.4571 (AISI 316Ti)
Medium temperature -20…+80 °C
Ambient temperature -20…+80 °C
Protection class IP67
