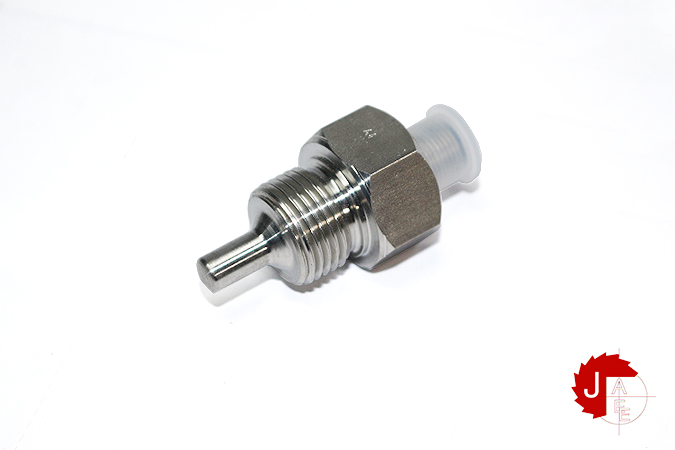

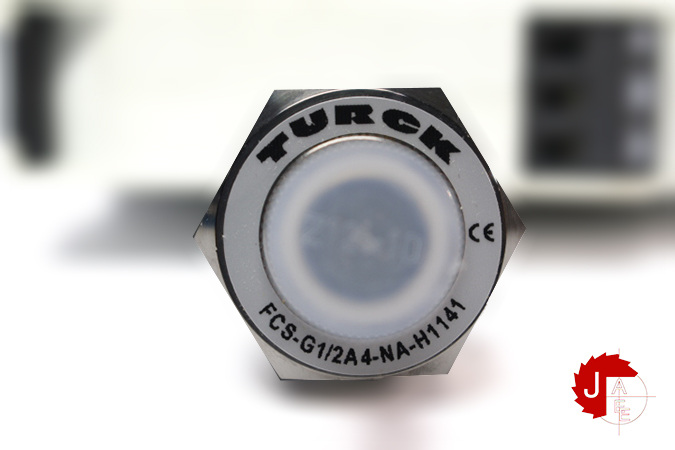

TURCK FCS-G1/2A4-NA-H1141 Flow Monitoring

Manufacturer: TURCK
Type: Flow Monitoring
Model: FCS-G1/2A4-NA-H1141

Flow Monitoring

Immersion Sensor without Integrated Processor

Sensor for liquid media
Calorimetric functionality
Adjustment via signal processor
Status indicated via LED chain on signal processor
Sensor length 200 mm
Connector device, M12 × 1
4‐wire connection to the processor

Function Flow monitoring
Design Immersion
Process connection G 1/2”
Medium liquids
Detection type Calorimetric
Electrical connection Connector, M12 × 1
Sensor material Stainless steel
Housing material Stainless steel, 1.4571 (AISI 316Ti)
Medium temperature -20…+80 °C
Protection class IP67
