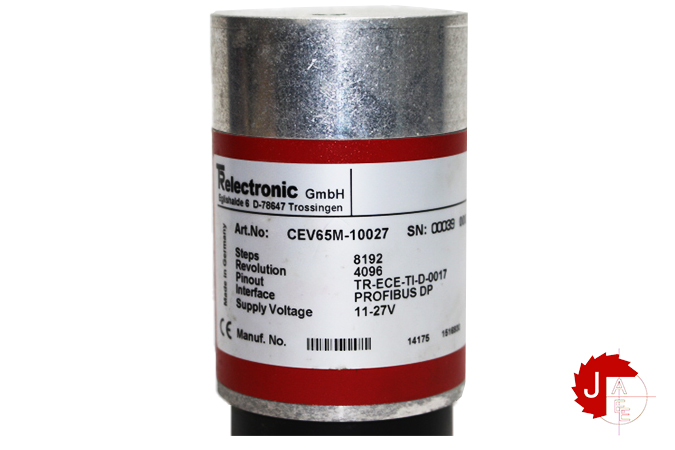

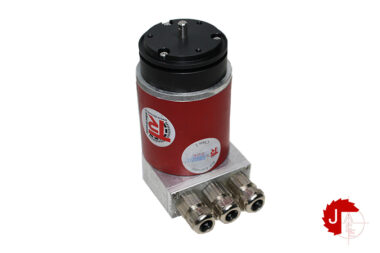

TR electronic CEV65M Absolute Encoder CEV56M-10027

550.00 $

Availability: 1 in stock

SKU: 0997855 Category:

Only 1 item left.

Manufacturer: TR electronic
Type: Absolute Encoder
Model: CEV56M-10027
Part No: CEV65M

Electrical Characteristic Data
Operating voltage: 11-27 V DC (± 5% residual ripple)
Max. current consumption:< 350 mA at 11 V DC, < 150 mA at 27 V DC
Output capacity: 24-bit (25-bit optional)
Resolution: 4096 steps/rev (12-bit)
Option: 8192 steps/rev (13-bit)
Measuring range: 4096 revolutions (12-bit)
Output code: Programmable (binary, Gray)
Baud rate:  300 kbps net, 500 kbps gross (including controland status bytes)
Data refresh: 0.5 ms
Encoder interface: Two-wire remote bus for INTERBUS-S, RS422 with galvanic isolation
Ident number: 51 dec.
Special features: Programming the following parameters via the
INTERBUS-S:

Mechanically permissible speed: 6000 RPM
Permissible shaft loading: 40 N axial, 60 N radial (at end of shaft)



Manufacturer TR electronic
Model CEV65M Absolute Encoder CEV56M-10027
Condition New
