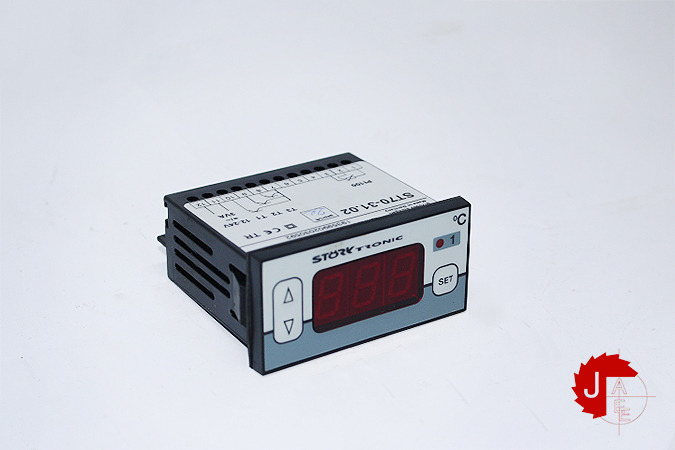

STORK TRONIC ST70-31.02 PID controller

STORK TRONIC ST70-31.02 PID controller

Manufacturer: STORK TRONIC
Type: PID controller
Model: ST70-31.02

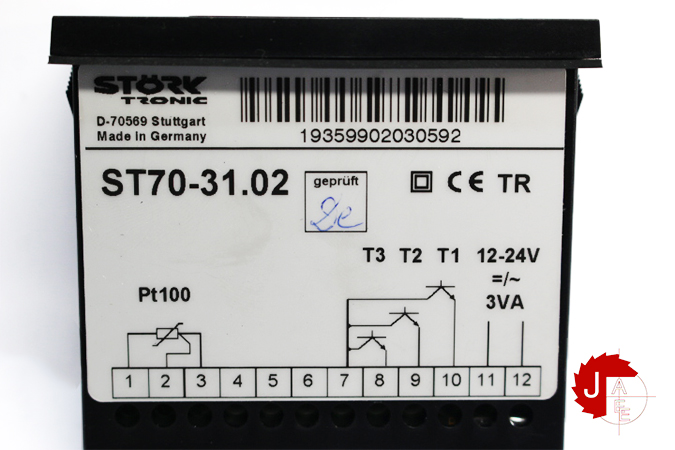

Measuring input F1: Resistance thermometer Pt100-3L Measuring range: -99°C…850°C (with appropriate sensor) Measuring accuracy: 0.5K +/- 0.5 % of scale range, without sensor

Outputs T1, T2, T3: 3 Opto coupler outputs, all 3 collectors of the transistors are connected to each other. Collector-Emitter-voltage: max. 35V Collector power loss: max. 150mW each output Collector current: max. 80mA each outpu

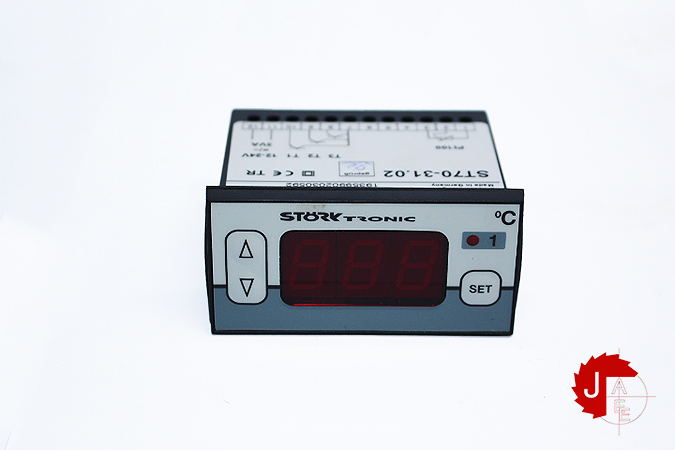

Display One 3-digit LED-display, height 13mm, for temperature display, colour red One LED, for status display

Power supply 12…24V AC/DC Power supply is not galvanically separated!
