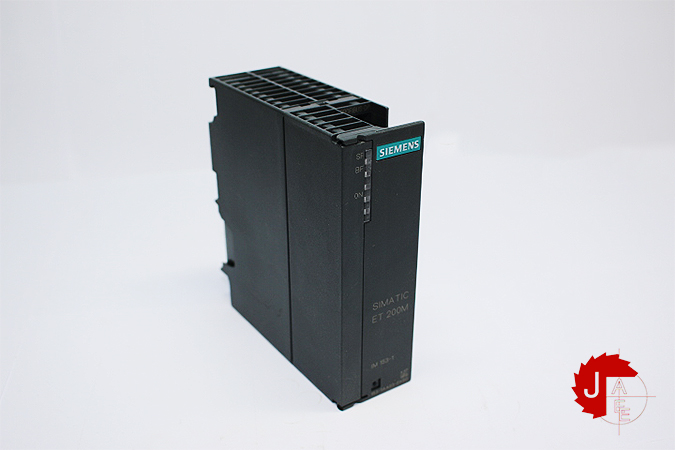

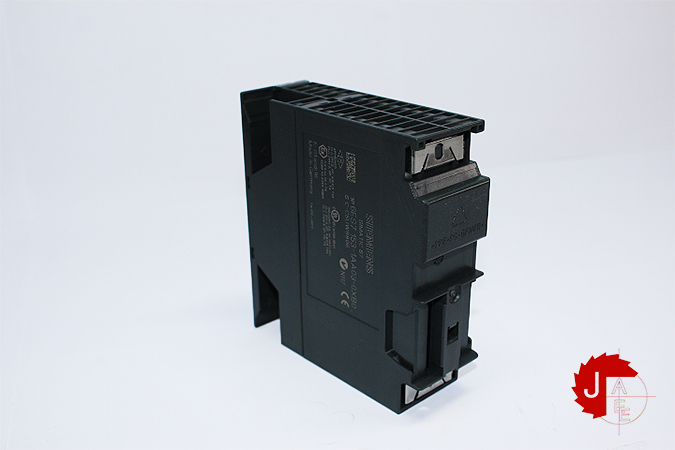

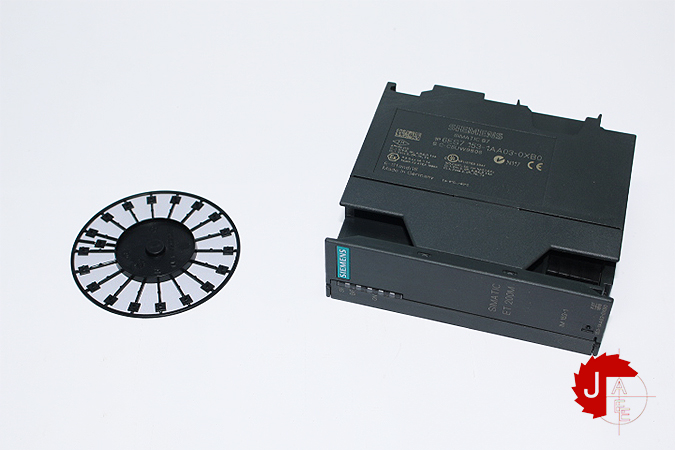

SIEMENS 6ES7 153-1AA03-0XB0 SIMATIC DP, Connection IM 153-1

Manufacturer: SIEMENS
Type: SIMATIC DP, Connection IM 153-1
Model: 6ES7 153-1AA03-0XB0

SIMATIC DP, Connection IM 153-1, for ET 200M, for max. 8 S7-300 modules

General information
Product type designation IM 153-1 DP ST
Vendor identification (VendorID) 801Dh
Supply voltage
Rated value (DC) 24 V
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
external protection for power supply lines (recommendation) not necessary
Mains buffering
● Mains/voltage failure stored energy time 5 ms
Input current
Current consumption, max. 350 mA; At 24 V DC
Inrush current, typ. 2.5 A
I²t 0.1 A²·s
output voltage / header
Rated value (DC) 5 V
Output current
for backplane bus (5 V DC), max. 1 A
