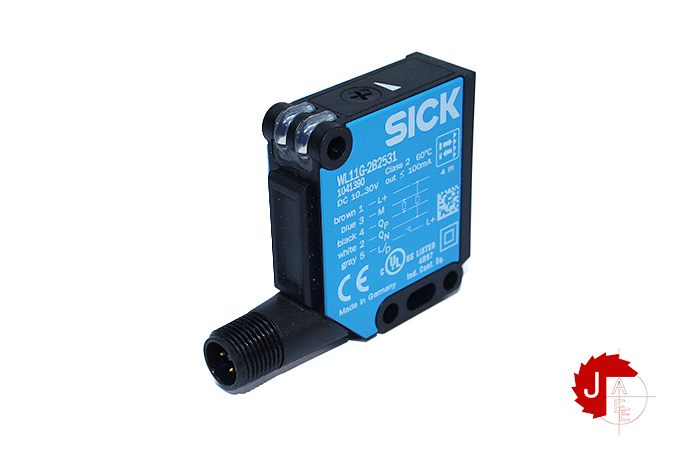

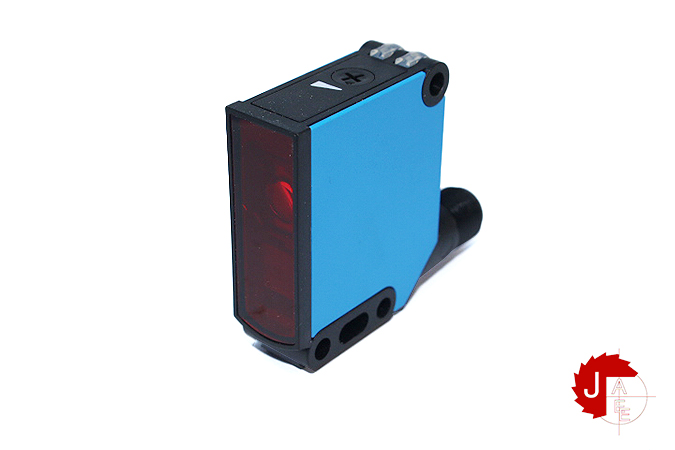

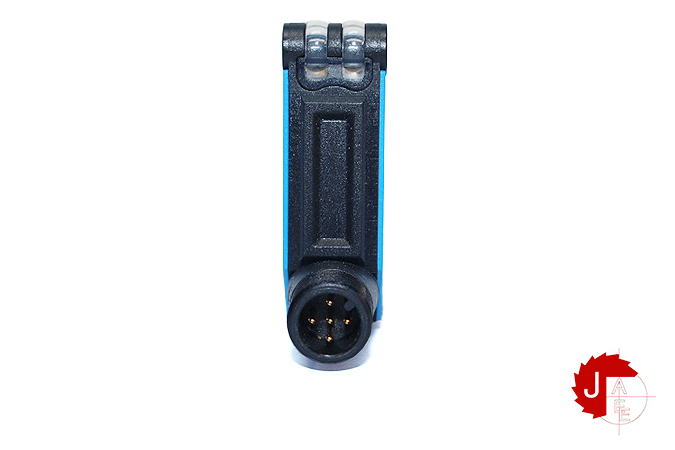

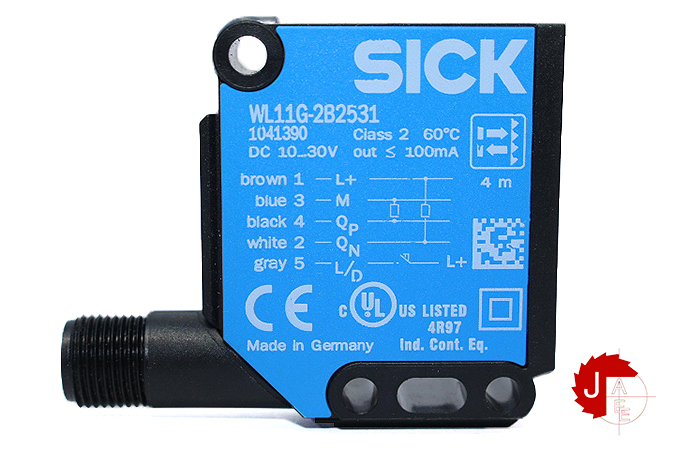

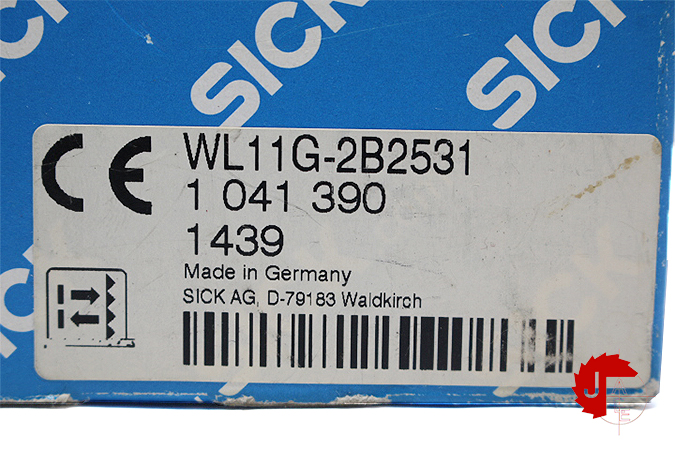

SICK WL11G-2B2531 SMALL PHOTOELECTRIC SENSORS 1041390

SKU: 0999775 Category:

Only 2 items left.

SICK WL11G-2B2531 SMALL PHOTOELECTRIC SENSORS 1041390

Manufacturer: SICK
Type: SMALL PHOTOELECTRIC SENSORS
Model: WL11G-2B2531
Art No: 1041390

Functional principle Photoelectric retro-reflective sensor
Functional principle detail Autocollimation
Dimensions (W x H x D) 15.6 mm x 48.5 mm x 42 mm
Housing design (light emission) Rectangular
Sensing range max. 0 m … 4 m
Sensing range 0 m … 4 m
Focus Approx. 1.5°
Type of light Visible red light
Light source LED
Light spot size (distance) Ø 25 mm (1.5 m)
Angle of dispersion Approx. 1.5°
Wave length 640 nm
Adjustment Potentiometer, 11 turns

Supply voltage 10 V DC … 30 V DC
Ripple < 5 Vpp
Current consumption 30 mA
Switching output PNP / NPN
Switching mode Light/dark switching
Switching mode selector Selectable via L/D control cable
Signal voltage PNP HIGH/LOW Uv – 3 V / approx. 0 V
Signal voltage NPN HIGH/LOW Approx. Uv / < 3 V
Output current Imax. ≤ 100 mA

Manufacturer SICK
Model WL11G-2B2531 SMALL PHOTOELECTRIC SENSORS 1041390
Condition New
