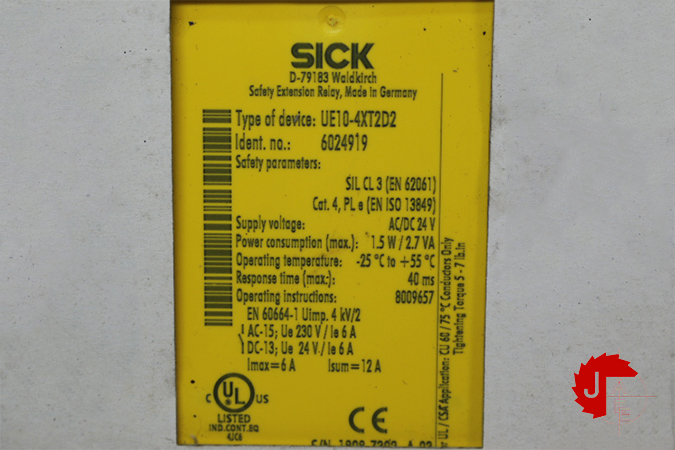

SICK UE10-4XT2D2 SAFETY RELAYS 6024919

SICK UE10-4XT2D2 SAFETY RELAYS 6024919

Manufacturer: SICK
Type: SAFETY RELAYS
Model: UE10-4XT2D2
Part No: 6024919

Safety integrity level

Category Category 4 (EN ISO 13849)
Performance level PL e (EN ISO 13849)
B10d parameter
2.5 x 106 witching cycles (AC-15, 230 V, I = 1.5 A)

6 x 106 switching cycles (AC-15, 230 V, I = 0.75 A)

2 x 106 switching cycles (DC-13, 24 V, I = 2.5 A)

10 x 106 switching cycles (DC-13, 24 V, I = 0.6 A)

PFHD (mean probability of a dangerous failure per hour) 2.47 x 10-8 (EN ISO 13849)

Voltage supply A1, A2
Output circuit > 25 V AC / 60 V DC PELV
Output circuit ≤ 25 V AC / 60 V DC PELV or SELV
Supply voltage VS A1, A2
24 V AC/DC (20.4 V AC/DC … 26.4 V AC/DC)
Residual ripple (≤ 2.4 Vpp) 1)
Power consumption
2.7 VA (AC)

1.5 W

Overvoltage category III (see operating instructions)
Rated insulation voltage Ui 300 V AC
Rated impulse withstand voltage Uimp 4 kV
