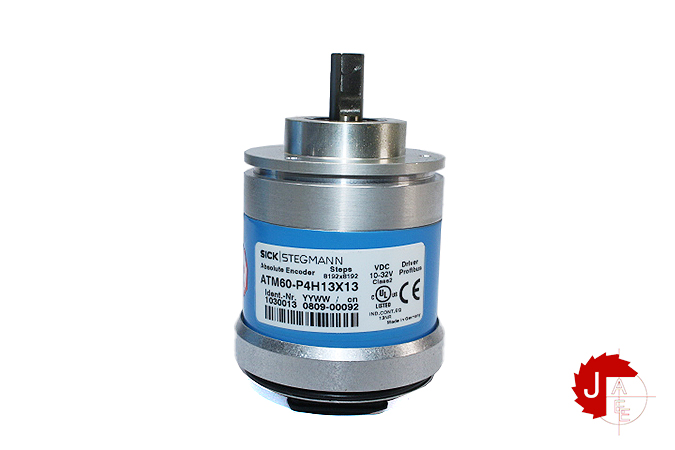

SICK STEGMANN ATM60-P4H13X13 ABSOLUTE ENCODERS 1030013

SICK STEGMANN ATM60-P4H13X13 ABSOLUTE ENCODERS 1030013

Manufacturer: SICK STEGMANN
Type: ABSOLUTE ENCODERS
Model: ATM60-P4H13X13
Part No: 1030013

Shaft diameter: 10 mm
 Shaft length: 19 mm
Number of steps per revolution (max. resolution): 8,192 (13 bit)
Number of revolutions: 8,192 (13 bit)
Max. resolution (number of steps per revolution x number of revolutions): 13 bit x 13 bit (8,192 x 8,192)
Measuring step: 0.043°
Error limits G: ± 0.25°
Repeatability standard deviation σr: 0.1°
Communication interface: PROFIBUS DP
Communication Interface detail: DPV0
Data protocol: Profile for encoders (07hex) – Class 2
Address setting: 0 … 127, DIP switches or protocol
Data transmission rate (baud rate): 9.6 kBaud … 12 MBaud, automatic detection
Initialization time: 1,250 ms

Supply voltage: 10 … 32 V
