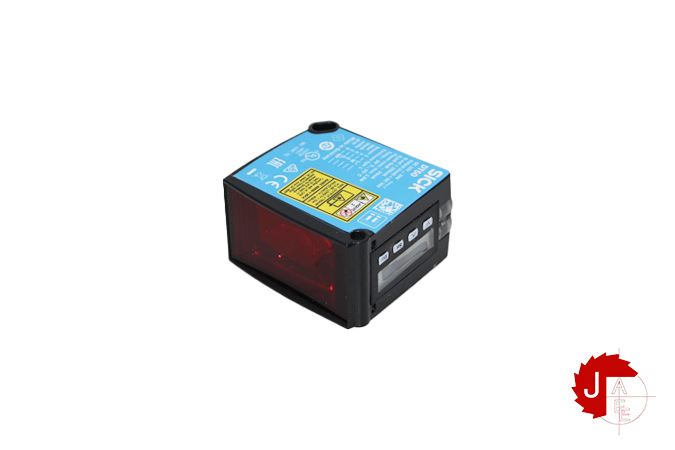

SICK DT50 Mid range distance sensors 1044369

Manufacturer: SICK
Type: Mid range distance sensors
Model: DT50
Part No:  1044369

Supply voltage Vs DC 10 V … 30 V
Ripple ≤ 5 Vpp
Power consumption ≤ 2.1 W
Initialization time ≤ 250 ms
Warm-up time ≤ 15 min
Housing material Metal (zinc diecast)
Window material Plastic (PMMA)
Connection type Male connector, M12, 5-pin
Indication LC display, 2 x LED
Dimensions (W x H x D) 36.1 mm x 62.7 mm x 57.7 mm
Enclosure rating IP65
Protection class III

Measuring range
200 mm … 10,000 mm, 90 % remission

200 mm … 6,500 mm, 18 % remission

200 mm … 4,000 mm, 6 % remission

Typ. light spot size (distance) 15 mm x 15 mm (10 m)

Additional function
Set moving average: fast/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, teach-in, scaling and inversion of analog output, Multifunctional input: laser off / external teach / deactivated, switch-off display, reset to factory default, lock user interface
