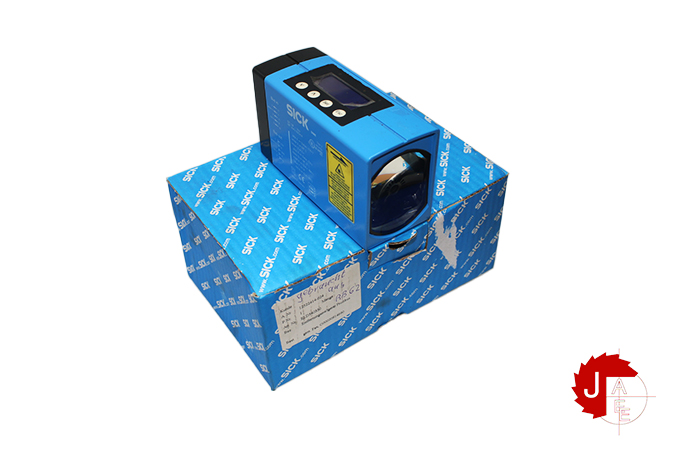

SICK DME4000-212 Long range distance sensors 1029791

Manufacturer: SICK
Type: Long range distance sensors
Model: DME4000-212
Part No: 1029791

Supply voltage Vs DC 18 V … 30 V, limit values
Ripple < 5 Vpp
Initialization time 1.5 s
Housing material Metal (zinc diecast)
Window material Glass

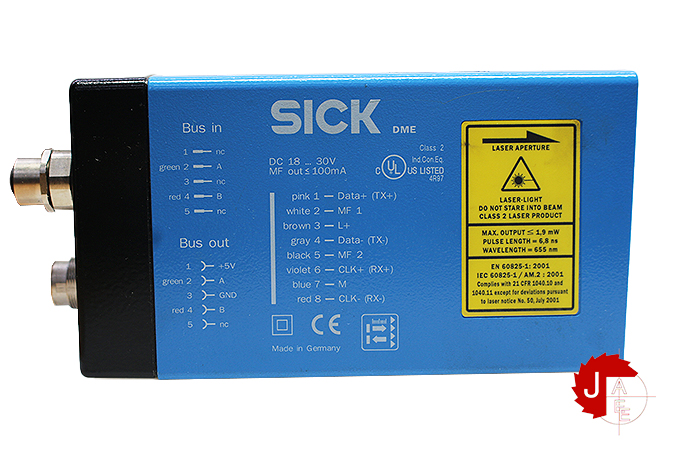

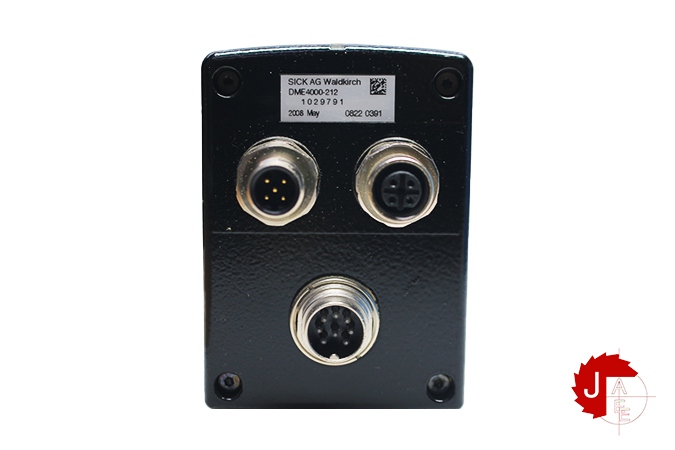

Connection type Male connector, 2 x M12, 5-pin, B-coded, 1 x M16, 8-pin, B-coded
Indication Display
Weight Approx. 1,650 g
Current consumption At 24 V DC < 250 mA
Dimensions (W x H x D) 61 mm x 85 mm x 166 mm
Measuring range 0.15 m … 130 m, on “diamond grade” reflective tape
Target Reflector
Resolution 0.05 mm … 5 mm
Repeatability 2 mm 1) 2)
Accuracy ± 5 mm
Response time 6 ms
Output time 2 ms
