SICK C20E-105303D41 SAFETY LIGHT CURTAINS C2000

SICK C20E-105303D41 SAFETY LIGHT CURTAINS C2000

Manufacturer: SICK
Type: SAFETY LIGHT CURTAINS
Model: C2000

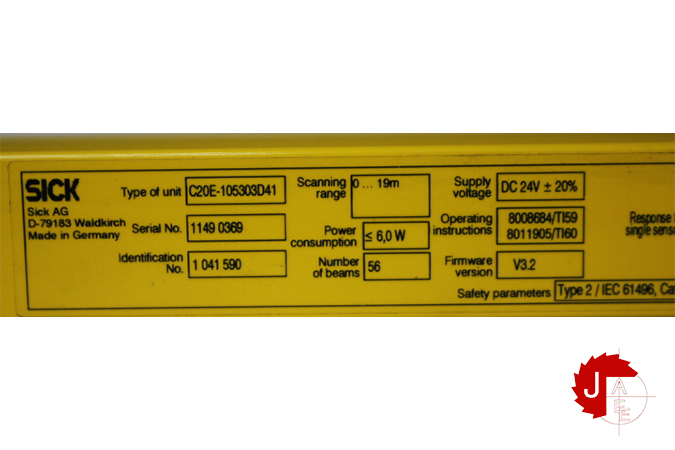

Art No: C20E-105303D41

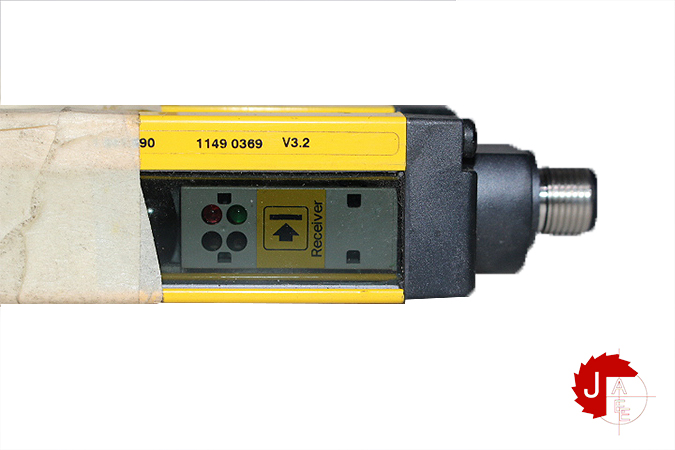

Sender and Receiver

Resolution 30 mm
Protective field height 1,050 mm
Synchronization Optical synchronisation

Type Type 2 (IEC 61496-1)
Safety integrity level SIL1 (IEC 61508)
Category Category 2 (EN ISO 13849)
Test rate (internal test) 13 /s (EN ISO 13849) 1)
Maximum demand rate ≤ 8 min⁻¹ (EN ISO 13849) 2)
Performance level PL c (EN ISO 13849)
PFHD (mean probability of a dangerous failure
per hour)
2.2 x 10-8 (EN ISO 13849)
TM (mission time) 20 years (EN ISO 13849)
Safe state in the event of a fault At least one OSSD is in the OFF state
