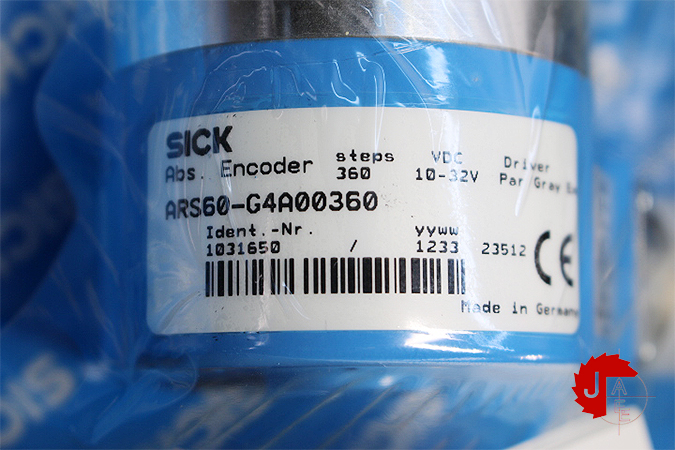

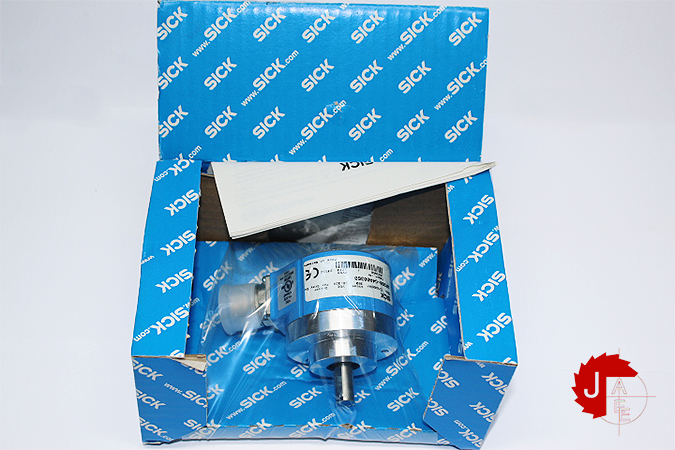

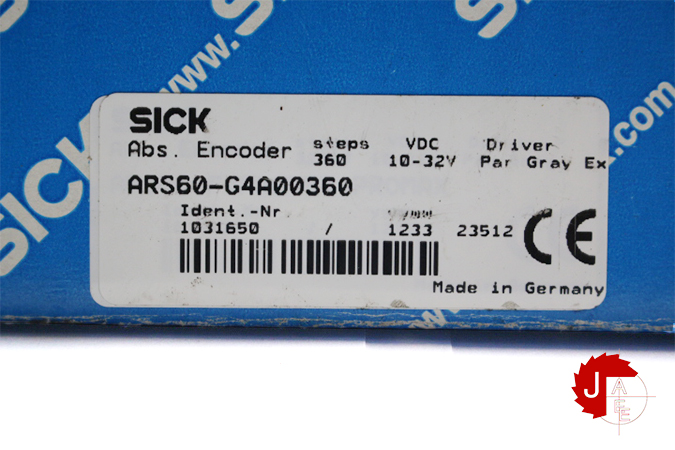

SICK ARS60-G4A00360 Absolute encoders 1031650

SICK ARS60-G4A00360 Absolute encoders 1031650

Manufacturer: SICK
Type: Absolute encoders
Model: ARS60-G4A00360
Part No: 1031650

Performance
Number of steps per revolution (max. resolution) 360
Measuring step 360° /number of steps

Measuring step deviation
0.005° binary number of steps
0.016° non-binary number of steps

Error limits G
0.035° (binary number of steps)
0.046° (non-binary number of steps)

Repeatability standard deviation σr 0.005°

Interfaces
Communication interface Parallel data world
Initialization time 80 ms
Code type Gray, trimmed
Code sequence parameter adjustable CW (clockwise) increasing when viewing the clockwise rotating shaft
Measured value backlash 0.005°
Response threshold 0.003°

Electrical data
Connection type Male connector, M23, 21-pin, radial
Supply voltage 10 … 32 V
Operating current Typ. 90 mA
MTTFd: mean time to dangerous failure 300 years (EN ISO 13849-1) 1)
Switching level of control inputs Logic H = 0.7 x US, Logic L = 0 V … 0.3 x US
Actuation of set button ≥ 100 ms

Mechanical data
Mechanical design Solid shaft, face mount flange
Shaft diameter 10 mm
Shaft length 19 mm
Weight Approx. 0.3 kg 1)
Housing material Aluminum die cast
Start up torque Typ. 0.4 Ncm
Operating torque Typ. 0.3 Ncm
