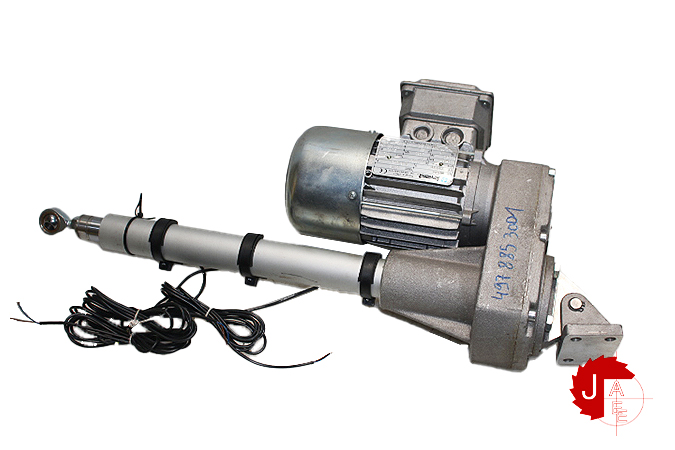

Servomech UBA1 RL1 Parallel design linear actuators

Manufacturer: Servomech

Type: Parallel design linear actuators

Model: UBA1 RL1

Push rod diameter [mm] 25
Outer tube diameter [mm] 36

Max. dynamic load. [N] 1800

Max. static load
pull [N] 4000
push [N] 4000

Ratio 1 : 3 (10 : 30)

Linear travel [mm]
for 1 input shaft revolution Ratio (RL1 1.67)

Attachment standard motor

Rated Voltage [VDC]: Y 230/400 50/60Hz
Rated Current [A]: 0.78/0.45
Rated Speed [rpm]: 1380
Rated Power [W]: 0.09
Protection Class [IP]: 55
Insulation Class: F
