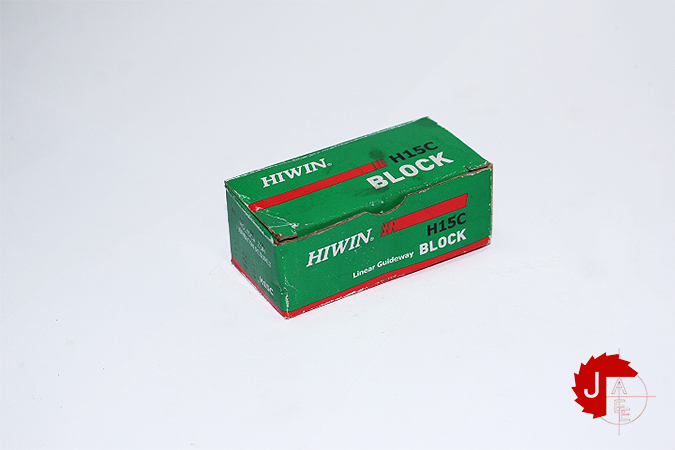

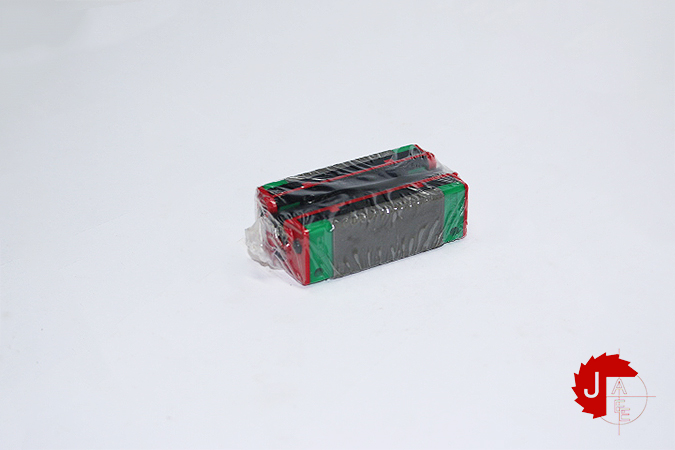

HIWIN HGL15CAZ0H Linear guideways Blocks

Manufacturer: HIWIN
Type: Linear guideways  Blocks

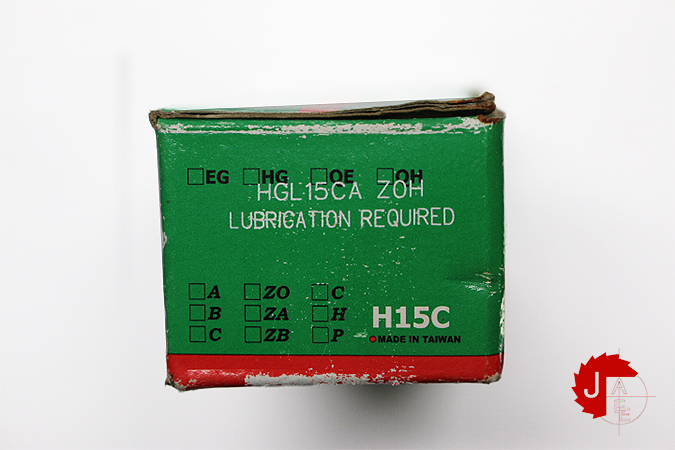

Model: HGL15CAZ0H

H Total height 24 mm
H1 4,3 mm
N 9,5 mm
W Block width 34 mm
B 26 mm
B1 4 mm
C 26 mm
L1 39,4 mm
L Block length 61,4 mm
K1 10 mm
K2 4,85 mm
G 5,3 mm
M M4
l 4 mm
T 6 mm
H2 3,95 mm
H3 3,7 mm
