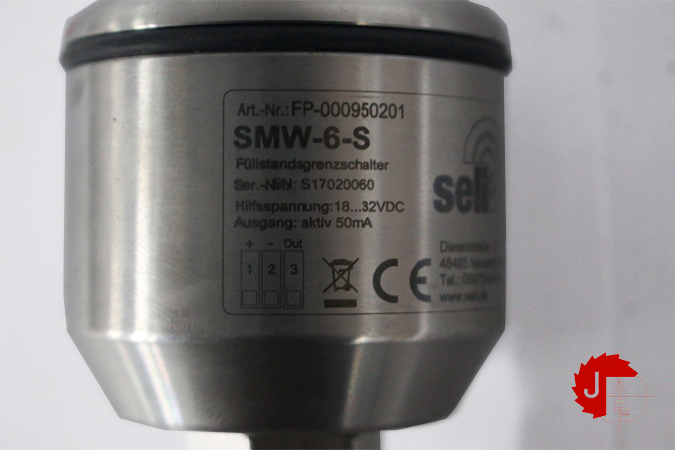

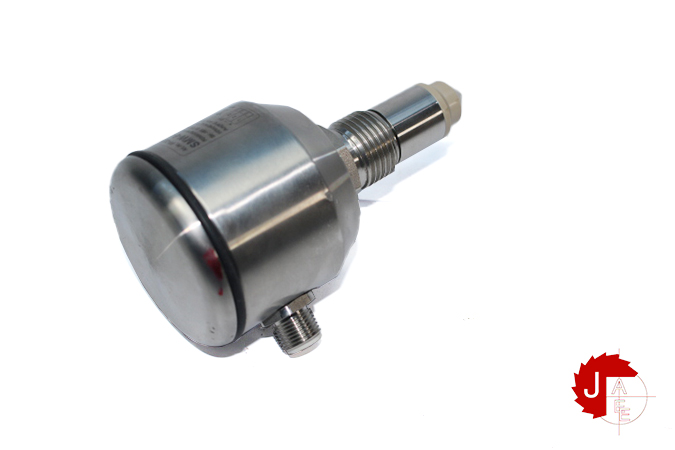

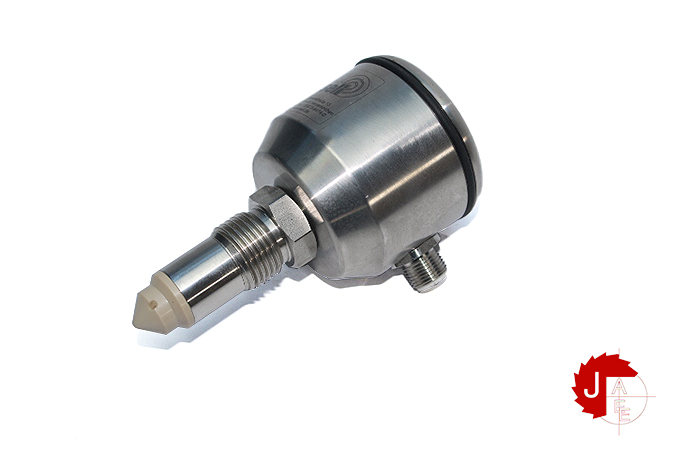

Seli SMW-6-S LEVEL-LIMIT SWITCH

APV S 050-21-96-12 ACTUATOR VALVE

Manufacturer: Seli
Type: LEVEL-LIMIT SWITCH
Model: SMW-6-S

Limit switch of the fill level for the food industry

Limit switch of the fill level for liquids DK>1
Two switching outputs for various media
e.g. Foam & Water / CIP & Product / etc .

High-grade steel connecting head. Nr. 1.4305

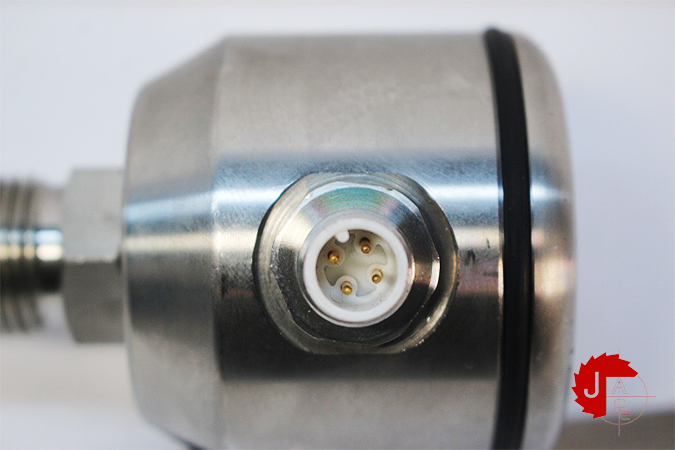

Electr. Connection: M16 screwing or M12 plug
Sensor heads made of Peek (HPC-Tip) 5-pole
Thread G 1/2” elastomer-free sealing system
Supply voltage 18…32 VDC u Output signal 2 x PNP (standard), NPN or Push-Pull switchable NC / NO invertable
Permissible load, 0Ohm, 24VDC, 100mA
Response timet < 0,3s
Ambient temperature -10…+70°C
Medium temperature durable 0…+100°C
ON / OFF delay 0..99.9 sec via PC
