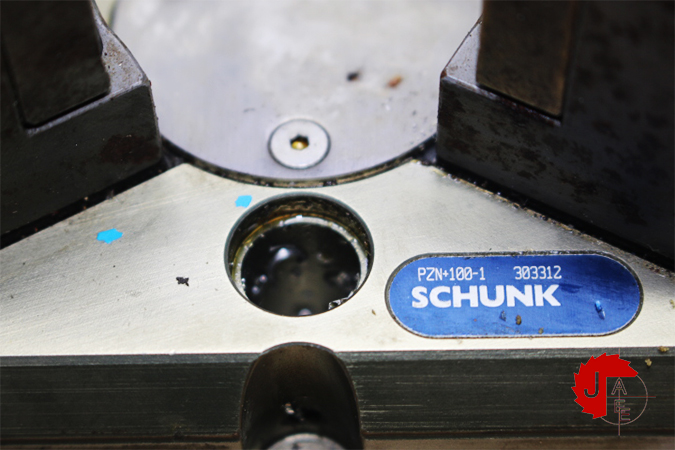

SCHUNK PZN+100-1 Universal gripper 303312

Manufacturer: SCHUNK
Type: Universal gripper
Model: PZN+100-1
Art No: 303312

Universal gripper PZN-plus, Size: 100, pneumatic

Stroke per jaw: 10 mm
Closing force: 1800 N
Opening force: 1920 N
Max. ambient temperature: 90 °C+

Stroke per jaw [mm] 10
Closing force [N] 1800
Opening force [N] 1920
Closing force (with finger lengths of 0 mm) [N] 2000
Opening force (with finger lengths of 0 mm) [N] 2141
Weight [kg] 1.41
Recommended workpiece weight [kg] 9
Fluid consumption double stroke [cm³] 120
Min. operating pressure [bar] 2
Max. operating pressure [bar] 8
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.1
Opening time [s] 0.1
