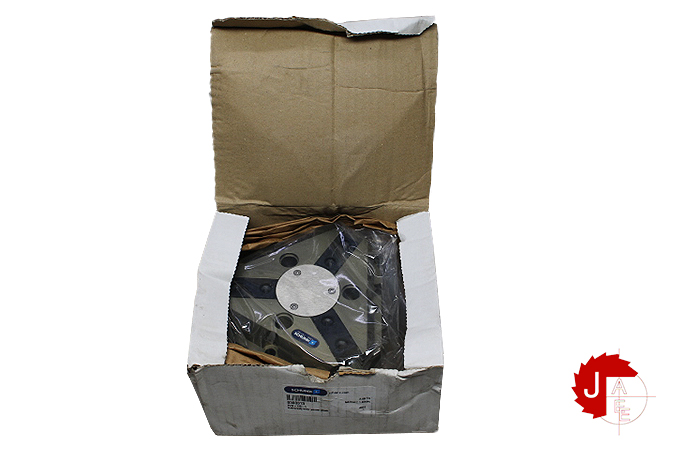

SCHUNK PZN 125-1 Universal gripper 300313

Manufacturer: SCHUNK
Type: Universal gripper
Model: PNZ 125-1
Art No: 300313

Stroke per jaw [mm] 13
Closing force [N] 3100
Opening force [N] 3330
Closing force (with finger lengths of 0 mm) [N] 3400
Opening force (with finger lengths of 0 mm) [N] 3670
Weight [kg] 2.47
Recommended workpiece weight [kg] 15.5
Fluid consumption double stroke [cm³] 230
Min. operating pressure [bar] 2
Max. operating pressure [bar] 8
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.2
Opening time [s] 0.2
Max. permissible finger length [mm] 180
Max. permissible weight per finger [kg] 2.1
IP protection class 40
Min. ambient temperature [°C] 5
Max. ambient temperature [°C] 90
Repeat accuracy [mm] 0.01
Cleanroom class ISO 14644-1 5
Diameter D [mm] 150
Height Z [mm] 67
Moment Mx max. [Nm] 120
Moment My max. [Nm] 145
Moment Mz max. [Nm] 100
Max. axial force Fz max. [N] 2800
