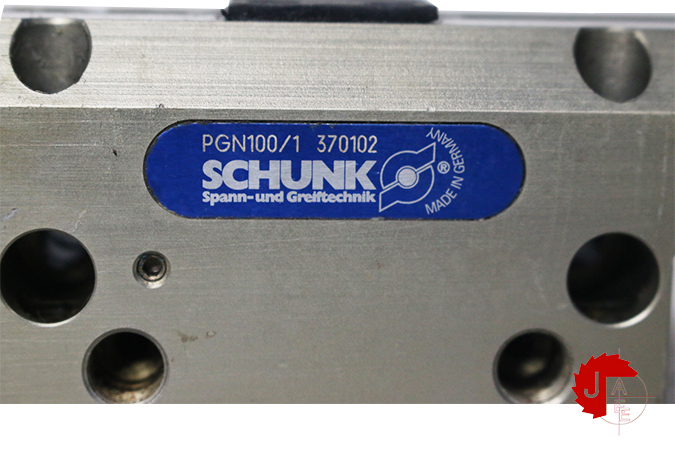

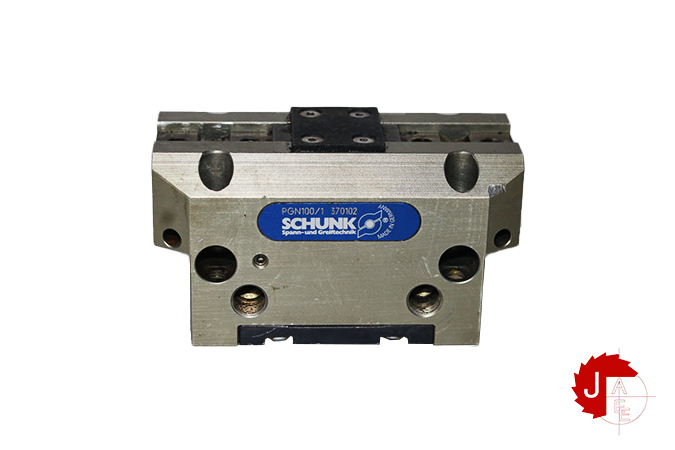

SCHUNK PGN 100-1 Universal gripper 38371102

Manufacturer: SCHUNK
Type: Universal gripper
Model: PGN 100-1
Art No: 38371102

Stroke per jaw [mm] 10
Closing force [N] 660
Max. permissible finger length [mm] 145
Stroke per jaw [mm] 10
Closing force [N] 660
Opening force [N] 725
Closing force (with finger lengths of 0 mm) [N] 770
Opening force (with finger lengths of 0 mm) [N] 845
Fluid consumption double stroke [cm³] 45
Min. operating pressure [bar] 2.5
Max. operating pressure [bar] 8
Nominal operating pressure [bar] 6
Min. air purge pressure [bar] 0.5
Max. air purge pressure [bar] 1
Closing time [s] 0.07
Opening time [s] 0.07
