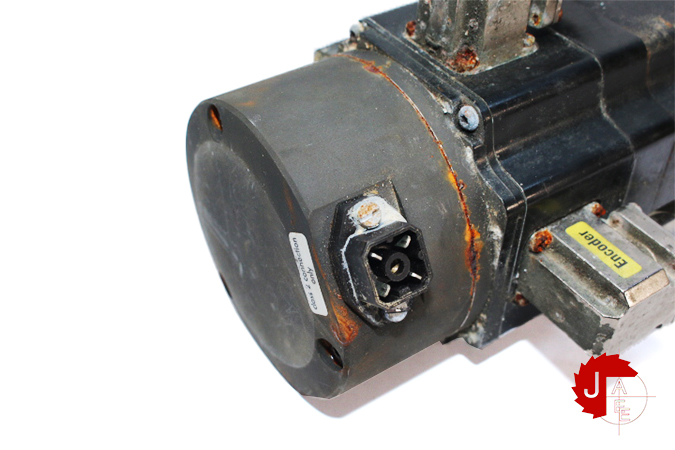

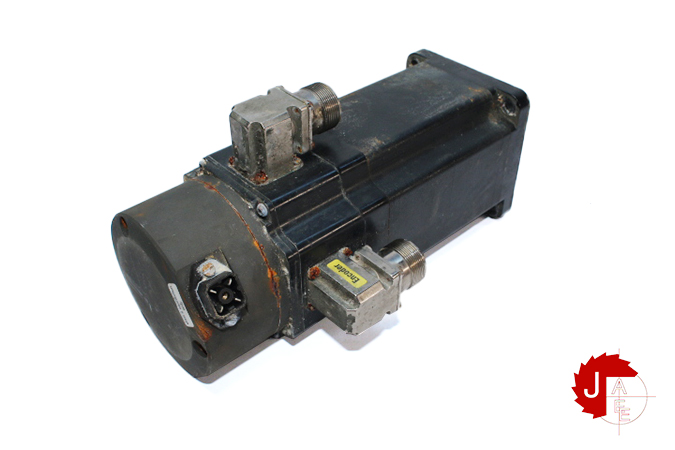

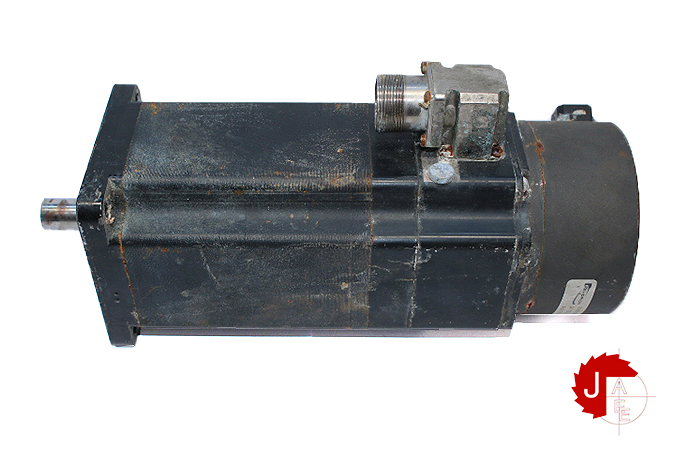

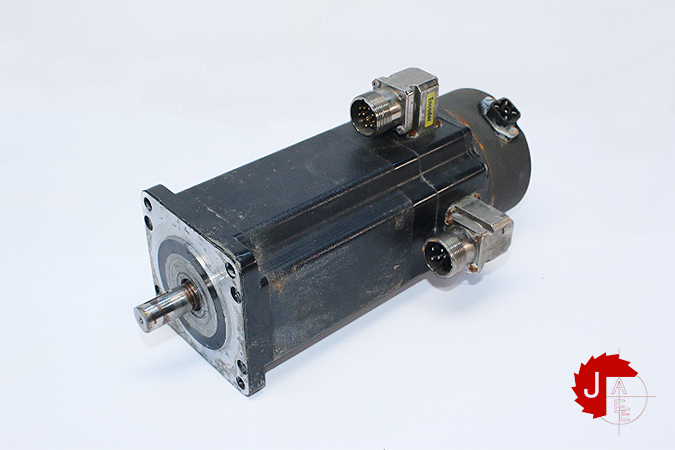

Schneider BRS39BW761FCA 3-phase stepper motor

Schneider BRS39BW761FCA 3-phase stepper motor

Manufacturer: Schneider
Type: 3-phase stepper motor

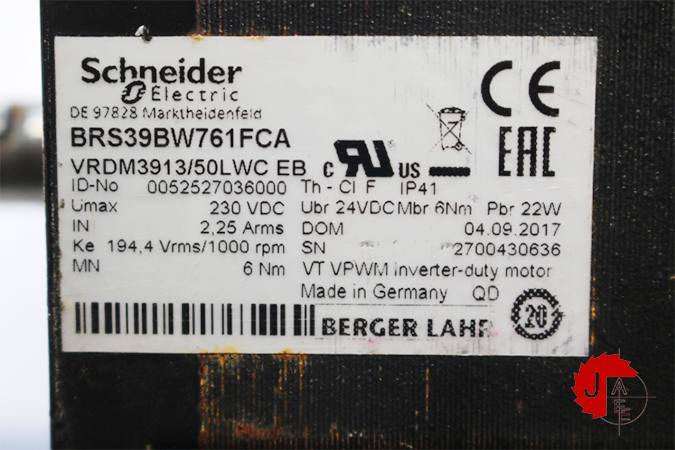

Model: BRS39BW761FCA

3-phase stepper motor – 6.78 Nm – shaft Ø 14 mm – L=128 mm – with brake – conn

Range Compatibility Lexium SD3
Product Or Component Type Motion control motor
Device Short Name BRS3
Maximum Mechanical Speed 3000 rpm
Motor Type 3-phase stepper motor
Number Of Motor Poles 6
Supply Voltage Limits 230 V AC
325 V DC
Mounting Support Flange
Motor Flange Size 85 mm
Length 217 mm
Centring Collar Diameter 60 mm
Complementary
Centring Collar Depth 2 mm
Number Of Mounting Holes 4
Mounting Holes Diameter 6.5 mm
Circle Diameter Of The Mounting
Holes
98.99 mm

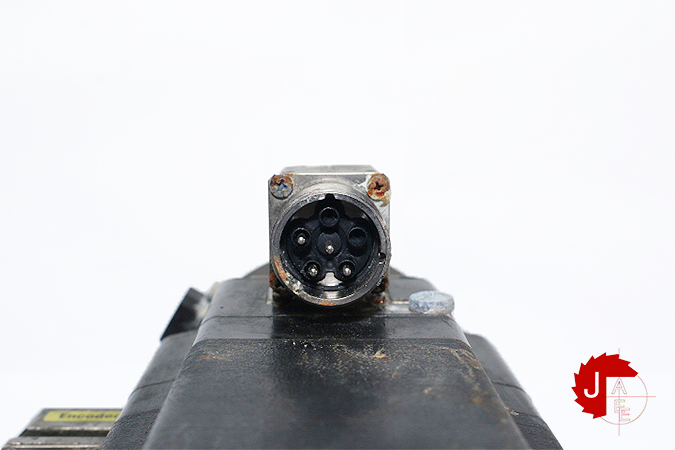

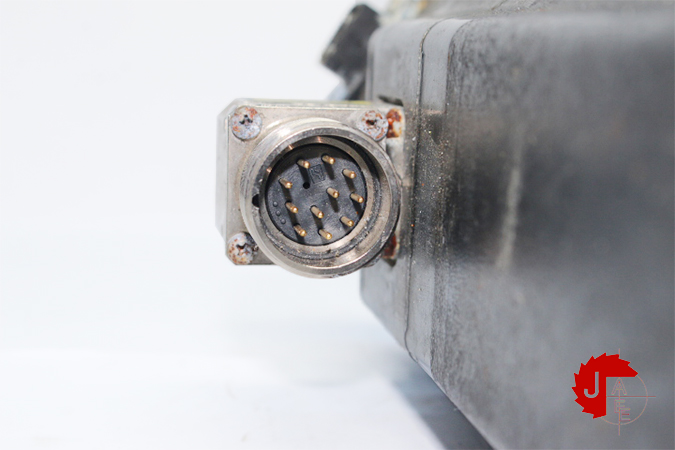

Electrical Connection Connector
