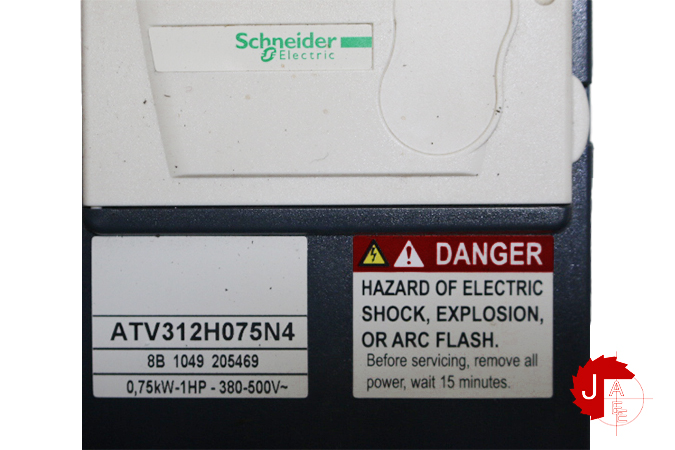

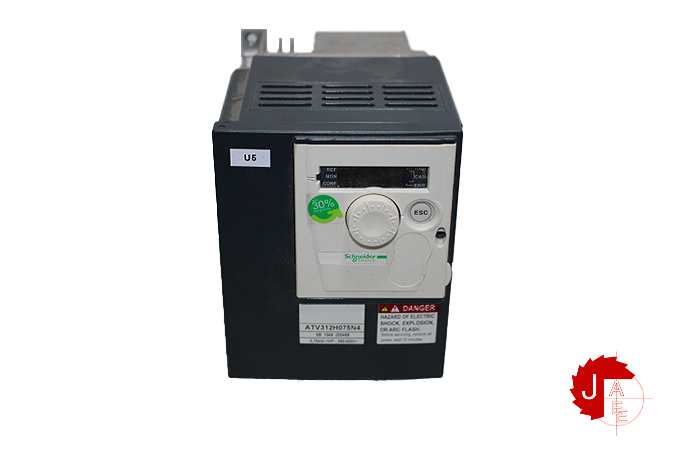

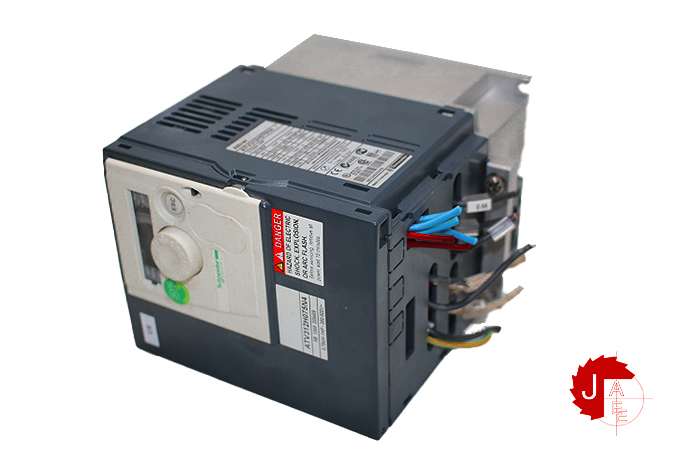

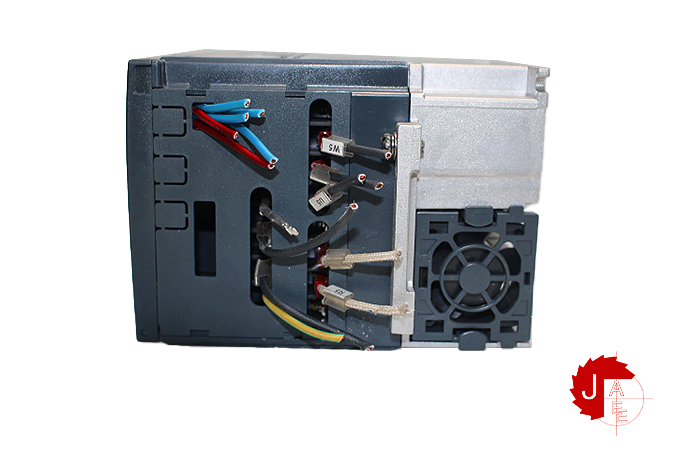

SCHNEIDER ATV312 0.75 Kw /1hp variable speed drive

SKU: 0995843 Category: Tags: , ,

Only 1 item left.

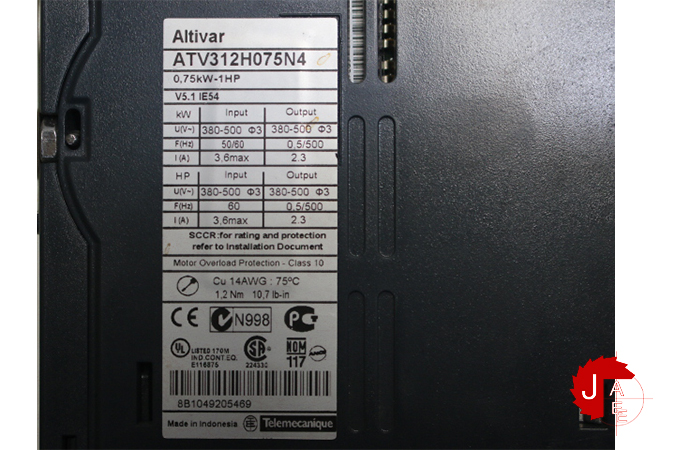

Altivar 312 Solar_ATV312H075M2412 (1)

Motor power kW 0.75 kW
Motor power hp 1 hp
[Us] rated supply voltage 200…240 V – 5…5 %
Supply voltage limits 170…264 V
Supply frequency 50…60 Hz – 5…5 %
Network frequency 47.5…63 Hz
Network number of phases Single phase
Line current 7.5 A at 240 V
8.9 A at 200 V, Isc = 1 kA
EMC filter Integrated
Apparent power 1.8 kVA
Prospective line Isc 1 kA
Continuous output current 4.8 A at 4 kHz
Maximum transient current 7.2 A for 60 s
Power dissipation in W 60 W at nominal load
Speed drive output frequency 0.5…500 Hz
Nominal switching frequency 4 kHz
Switching frequency 2…16 kHz adjustable
Speed range 1…50
Transient overtorque 150…170 % of nominal motor torque
Braking torque <= 150 % during 60 s with braking resistor
100 % with braking resistor continuously
150 % without braking resistor



Manufacturer SCHNEIDER
Model ATV312 0.75 Kw /1hp variable speed drive
Condition Used
