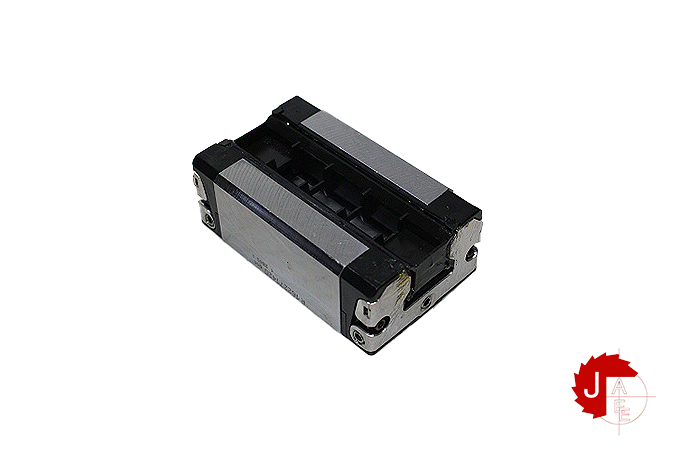

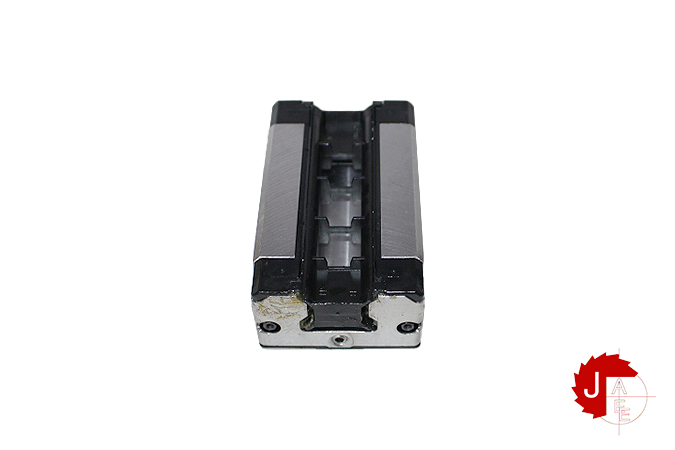

REXROTH KWD-030-SNS-C1-N-1 BALL RUNNER BLOCK CARBON STEEL

Manufacturer: REXROTH
Type: BALL RUNNER BLOCK CARBON STEEL
Model: KWD-030-SNS-C1-N-1

Ball runner block, SNS, size 30, steel CS, accuracy standard, low preload, without ball chain

Nominal size [mm] 30
Format  SNS – slimline, normal, standard height
Ball chain Without ball chain (standard)
Material (profiled rail systems) Carbon steel
Preload class C1 – Low preload
Accuracy class N – normal
Self-aligning for compensation of misalignments Without self-alignment

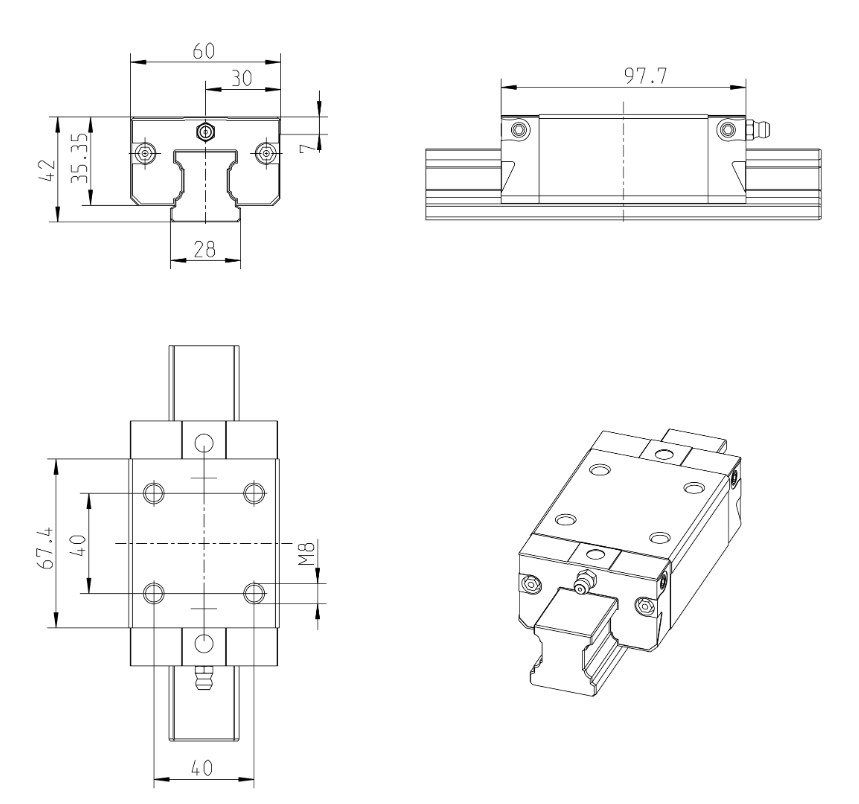

Width of runner block [mm] 60
Length of runner block [mm] 97.7
Height of runner block [mm] 35.35
Height of runner block with guide rail [mm] 42

he ball runner block is highly precise and characterized by the following product features:
Size 30
Format SNS: Width = slimline, length = normal, height = standard
Runner block body made of unalloyed steel CS
Preload class C1: Low preload
Accuracy class N: Standard
Without ball chain With initial lubrication and preservation
Roller bearing grease Dynalub 510
Without attachment element, left (front reference edge)
Without attachment element, right (front reference edge)
Straight lube connection loosely attached.
Runner block body in standard version
Overall length of the runner block = 97.7 mm
Interchangeability: The runner block and the guide rails can be combined with each other with every accuracy.
