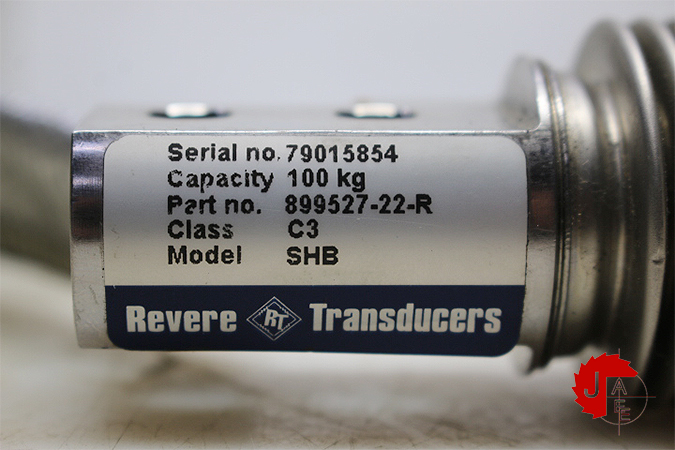

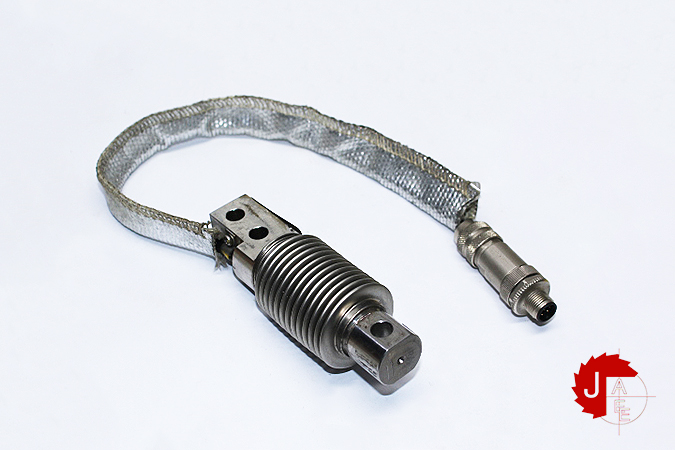

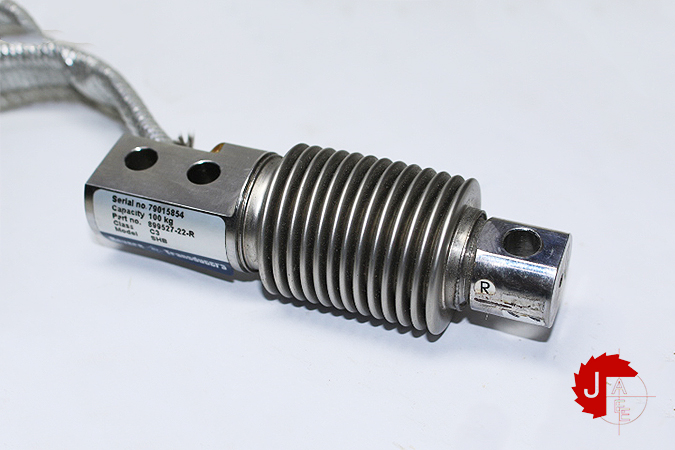

Revere Transducers SHB C3 0.1t Single-Ended Beam Load Cell

Manufacturer: Revere Transducers
Type: Single-Ended Beam Load Cell
Model: SHB C3 0.1t

Full Scale Output: 2.0 mV/V
Output Resistance: 350 (± 3.5) ohm
Input Resistance: 460 (± 3.5) ohm
Material/Finish: Stainless steel
Temperature:
Compensated range
14 °F to 104 °F (-10 °C to 40 °C)
Operating range
0 °F to 150 °F (-18 °C to 65 °C)
Seal Type: Welded-seal, IP67
Safe Overload: 150% full scale
Rated Excitation: 5 to 10 VDC (15 V maximum)
Combined Error: 0.02% full scale (SHB-A3)
Non-repeatability: 0.01% full scale
Insulation Resistance: 5,000 megohm
Deflection at Capacity: 0.4 mm
Cable Length: 10 ft
Cable Color Code:
Green +Excitation
Black –Excitation
White +Signal
Red –Signal
