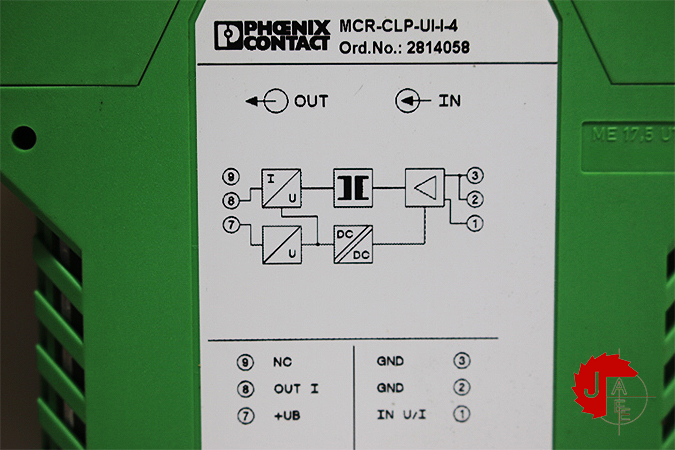

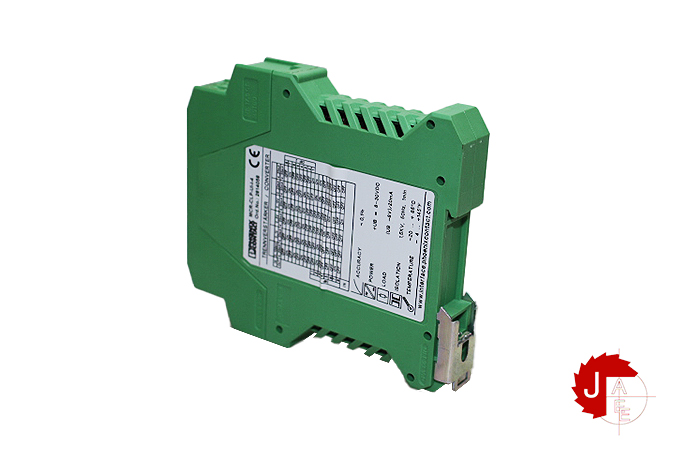

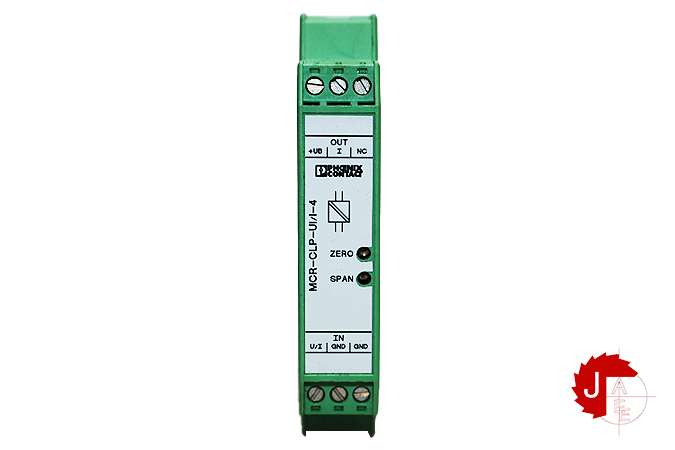

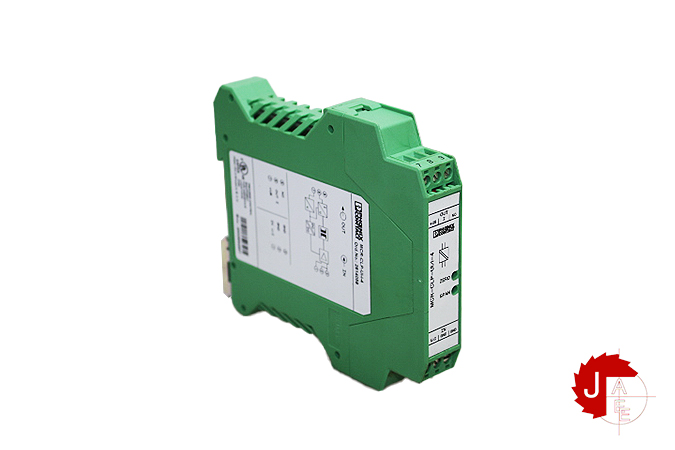

PHOENIX CONTACT MCR-CLP-UI-I-4 Signal conditioner 2814058

Manufacturer: PHOENIX CONTACT
Type: Signal conditioner
Model: MCR-CLP-UI-I-4
Part No: 2814058

Alignment span ± 2 % (of final value)
Alignment zero ± 2 % (of final value)
No. of channels 1
Limit frequency (3 dB) 30 Hz
Maximum power dissipation for nominal condition 160 mW
Test voltage input/output 1.5 kV AC (50 Hz, 60 s)
Step response (10-90%) 11 ms
Maximum temperature coefficient ≤ 0.01 %/K
Temperature coefficient, typical 0.005 %/K
Maximum transmission error ≤ 0.1 % (of final value)
Transmission error, typical 0.05 %
Supply
Designation Loop-powered
Supply voltage range 8 V DC … 30 V DC

Description of the input Current input

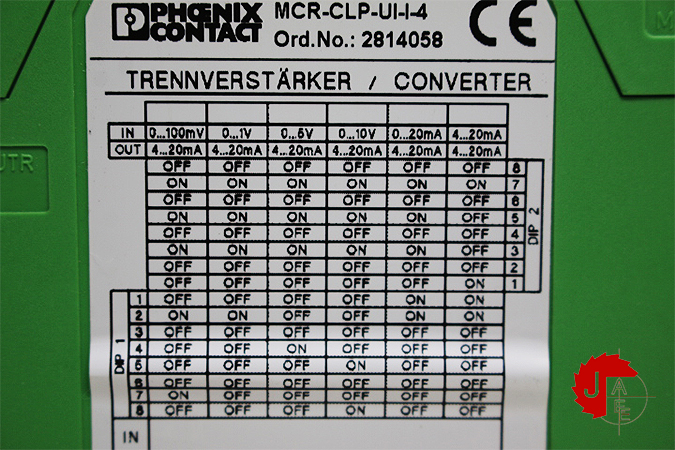

Configurable/programmable Yes
Max. voltage input signal 30 V
Current input signal 4 mA … 20 mA (please indicate if different setting when ordering)
Max. current input signal 50 mA
Input resistance of voltage input 1 MΩ
Input resistance current input 50 Ω

Signal: Current output
Configurable/programmable no
Current output signal 4 mA … 20 mA
Max. current output signal 35 mA
Load/output load current output ≤ 800 Ω (at UB = 24 V; otherwise: (UB – 8 V) / 20 mA)
