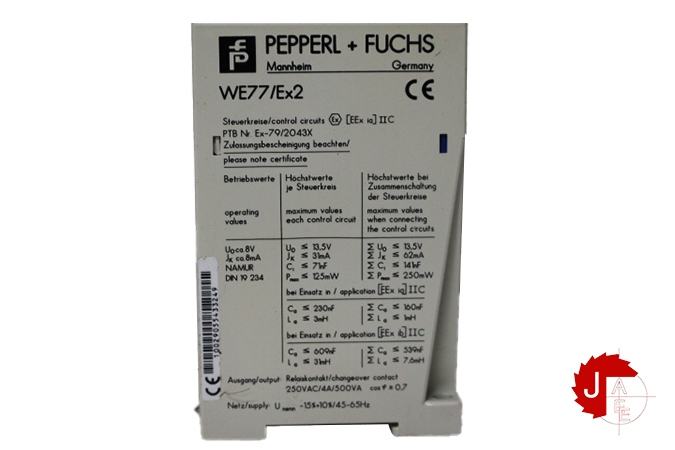

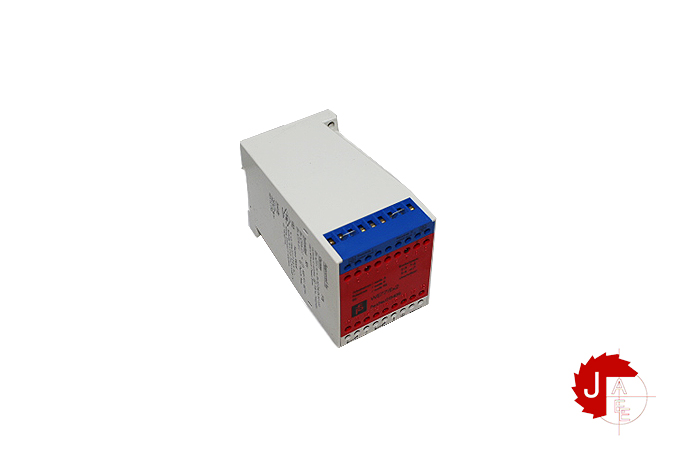

PEPPERL+FUCHS WE77/Ex2 Switch Amplifier

PEPPERL+FUCHS WE77/Ex2 Switch Amplifier

Manufacturer: PEPPERL+FUCHS
Type: Switch Amplifier
Model: WE77/Ex2

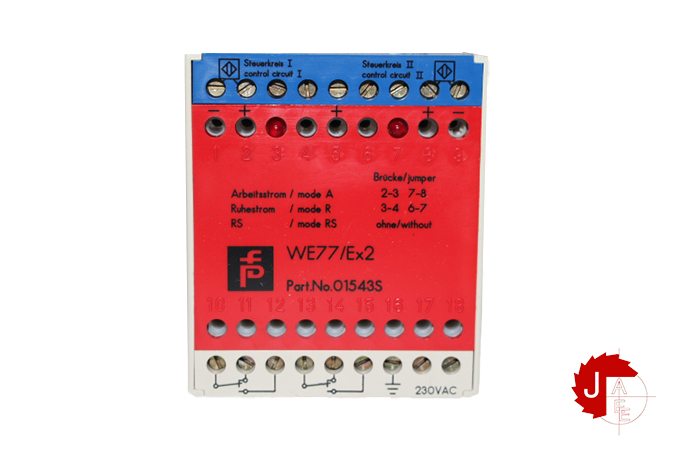

Connection terminals 17, 18
Rated voltage Ur 198 … 253 V AC ; 45 … 65 Hz
Power dissipation 2.5 W
Power consumption approx. 3.2 VA

Switching frequency < 10 Hz
Degree of protection IP20

Input Ex ia
Voltage Uo 13.4 V DC
Current Io 31 mA
Power Po 145 mW (trapezoid characteristic curve)

Supply
Maximum safe voltage Um 253 V AC (Attention! The rated voltage can be lower.)

Output
Maximum safe voltage Um 253 V AC (Attention! The rated voltage can be lower.)
