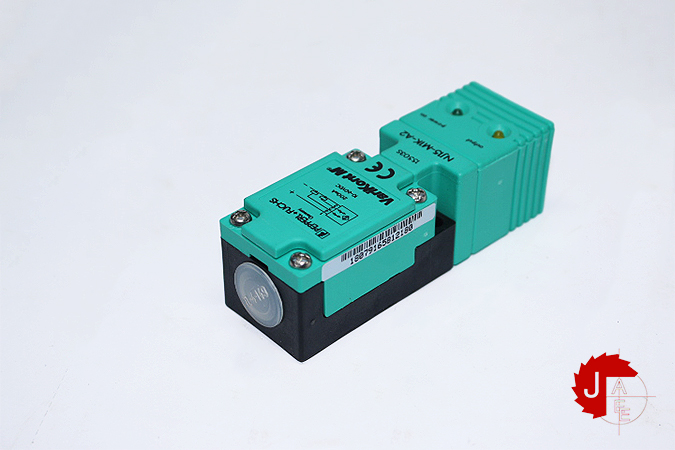

PEPPERL+FUCHS NJ15-M1K-A2 Inductive Sensors

Manufacturer: PEPPERL+FUCHS
Type: Inductive Sensors
Model: NJ15-M1K-A2

15 mm non-flush
4-wire DC
General specifications
Switching function complementary
Output type PNP
Rated operating distance 15 mm
Installation non-flush
Output polarity DC
Assured operating distance 0 … 12.15 mm

Nominal ratings
Operating voltage 10 … 60 V DC
Switching frequency 0 … 200 Hz
Hysteresis typ. 5 %
Reverse polarity protection yes
Short-circuit protection pulsing
Voltage drop ≤ 2.5 V
Operating current 0 … 200 mA
