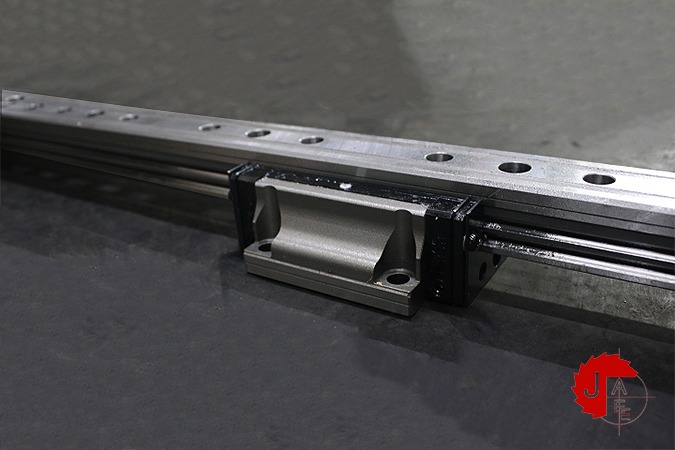

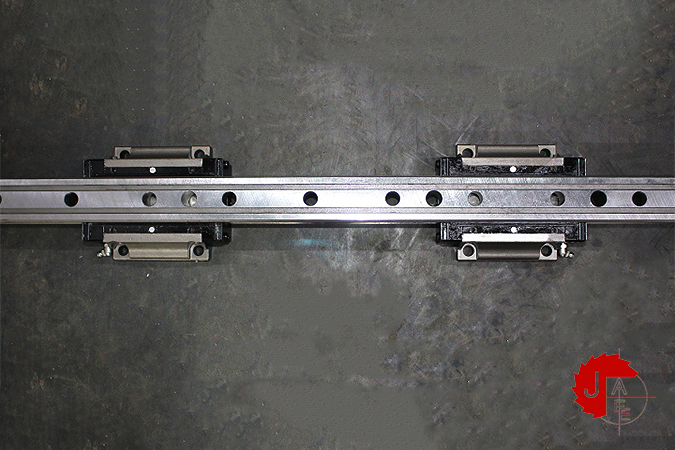

Manufacturer: NSK
Type: LINEAR GUIDE

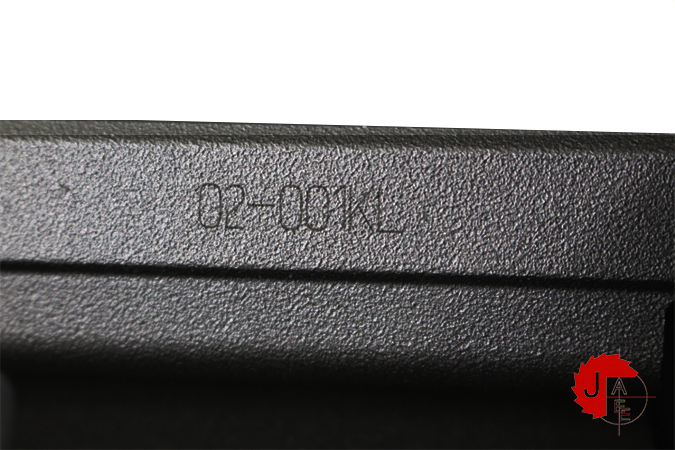

Model: 02-001KL
Part No: LY351840FLG2G02P540Z001
LM Guide Type : No tapped hole. High load
Height (Rail Combination with Block) = 42mm
Width (Block width) = 90mm
Width (Rail width) = 28mm
Block upper surface fastening dimension = 72mm X 52mm
Rail hole pitch : 80mm
Rail hole size : Use M8 bolt
Length of track rail : 1200 mm
G value (A distance of the rail that end of the rail to the first hole) : G: 25mm, 25mm
Pitch of rail : 25+ ( 80 X 7 times) + 25
| Manufacturer | NSK |
|---|---|
| Model | 02-001KL LINEAR GUIDE LY351840FLG2G02P540Z001 |
| Condition | New |
