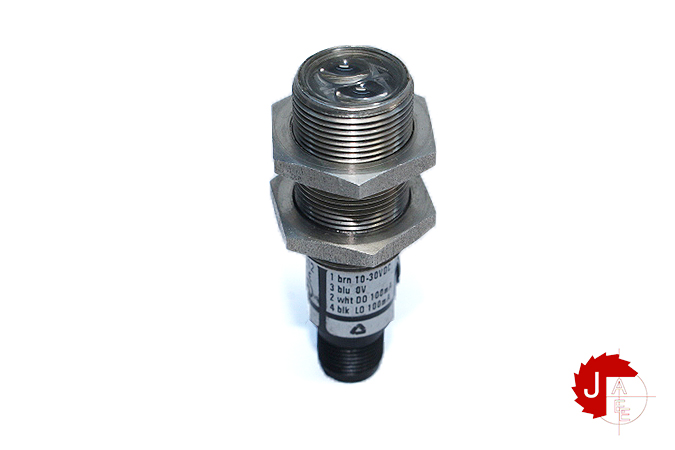

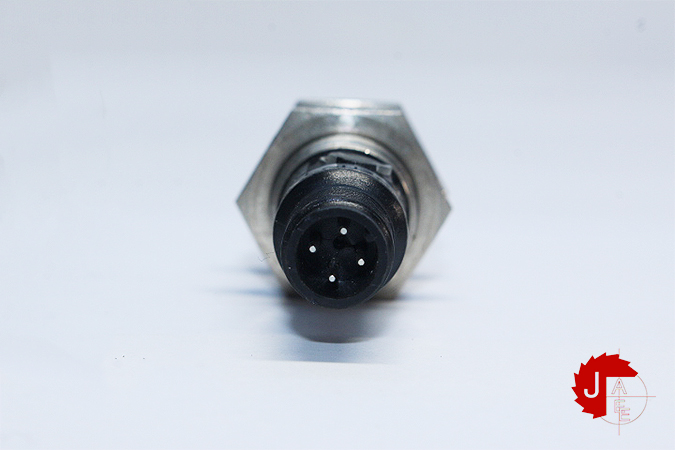

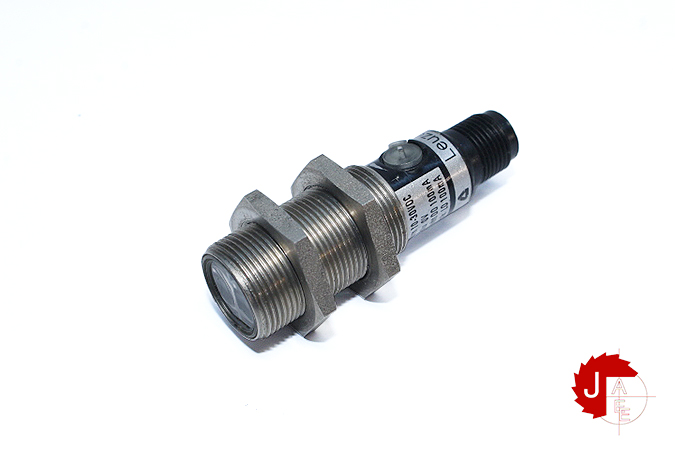

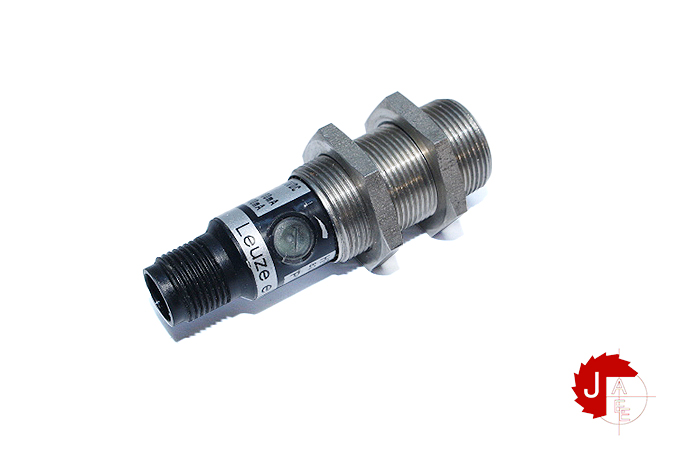

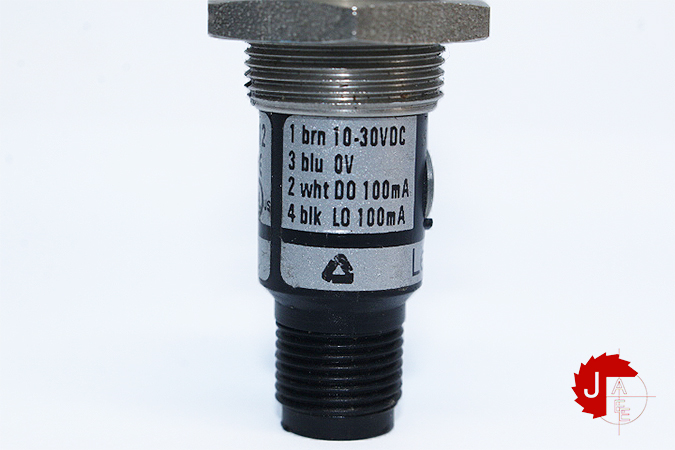

Leuze HRT 316M/P 100 S12 Diffuse sensor with background suppression

Leuze HRT 316M/P 100 S12 Diffuse sensor with background suppression

Manufacturer: Leuze
Type: Diffuse sensor with background suppression
Model: HRT 316M/P 100 S12

Operating range Guaranteed operating range
Operating range, white 90% 0.001 … 0.12 m
Operating range, gray 18% 0.005 … 0.11 m
Operating range, black 6% 0.008 … 0.1 m
Operating range limit Typical operating range

Supply voltage UB 10 … 30 V, DC
Residual ripple 0 … 10 %, From UB
Open-circuit current 0 … 25 mA
