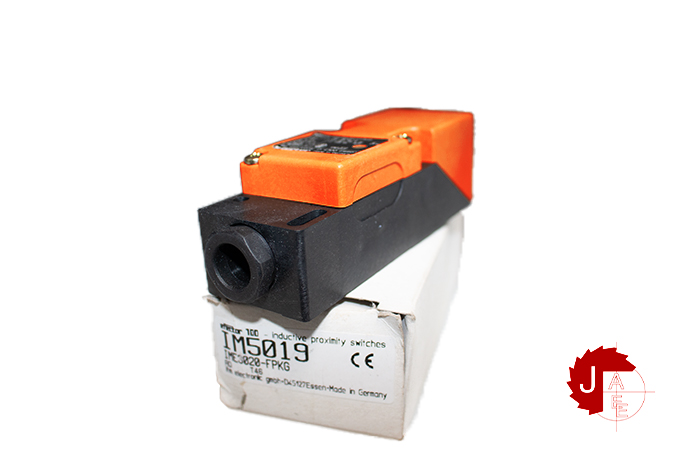

IFM IM5019 Inductive sensor

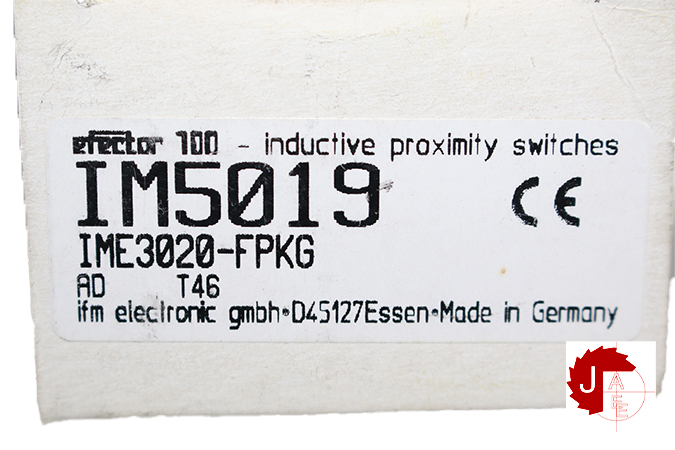

IFM IM5019

Manufacturer :IFM

MODEL :IM5019

Type : Inductive sensor

Product characteristics
Electrical design PNP
Output function normally open / normally closed; (selectable)
Sensing range [mm] 20
Housing rectangular
Dimensions [mm] 40 x 40 x 120

Electrical data
Operating voltage [V] 10…36 DC
Current consumption [mA] 15; (24 V)
Protection class II
Reverse polarity protection yes

Outputs
Electrical design PNP
Output function normally open / normally closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 250
Switching frequency DC [Hz] 300
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes

Detection zone
Sensing range [mm] 20
Real sensing range Sr [mm] 20 ± 10 %
Operating distance [mm] 0…16.2
