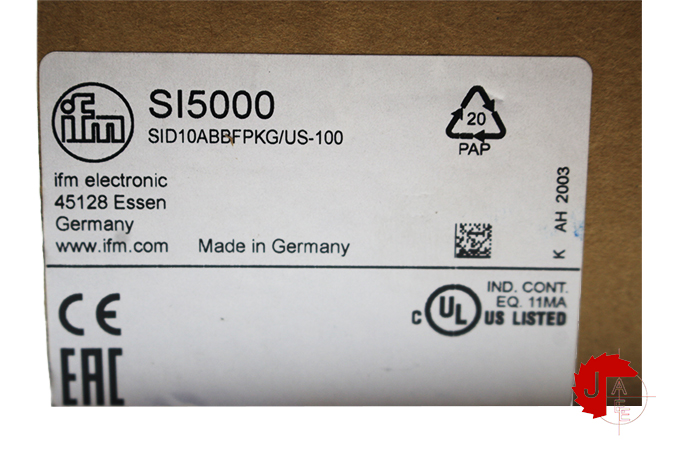

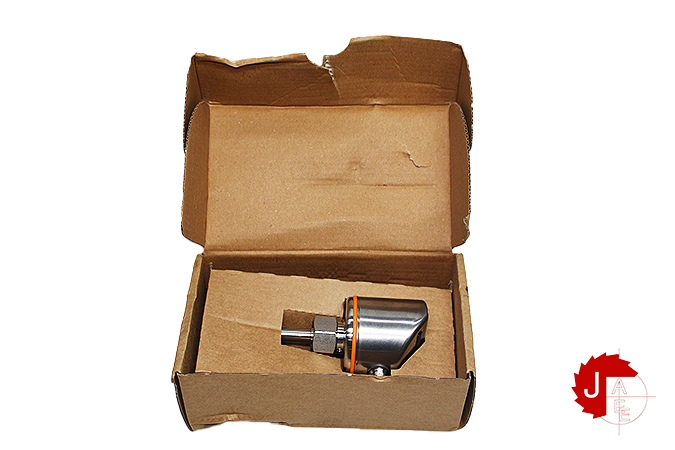

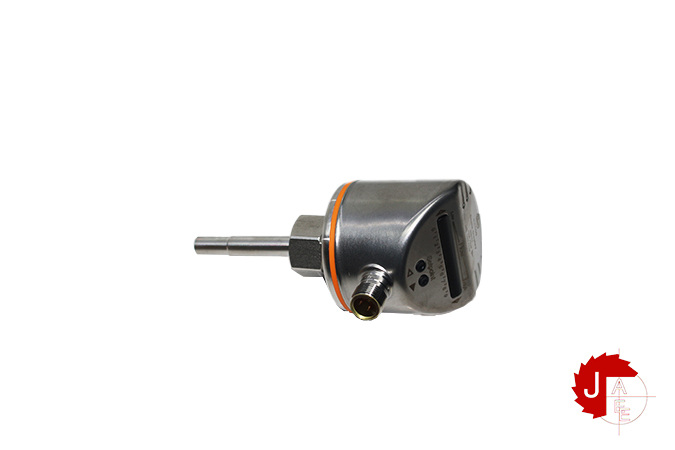

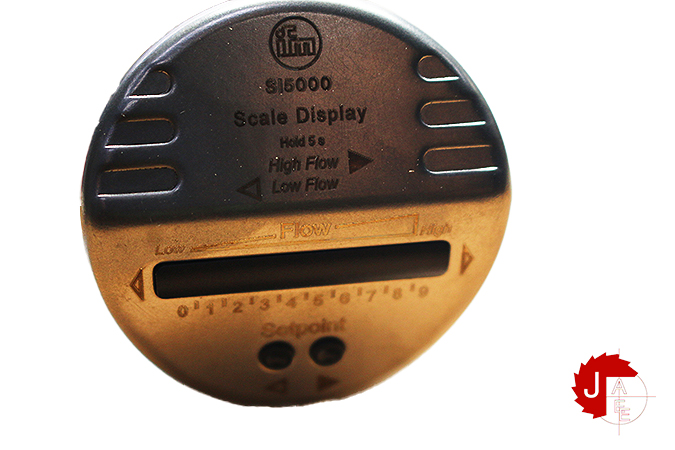

IFM SI5000 Flow monitor SID10ABBFPKG/US-100

Manufacturer: IFM Electronic
Type: Flow monitor
Model: SID10ABBFPKG/US-100
Part No: SI5000

Number of inputs and outputs Number of digital outputs: 1
Process connection M18 x 1,5 internal thread

Media Liquids; Gases
Medium temperature [°C] -25…80
Pressure rating [bar] 30

Operating voltage [V] 19…36 DC
Current consumption [mA] < 60

Total number of outputs 1
Output signal switching signal
Electrical design PNP
Number of digital outputs 1
Output function normally open / normally closed

Probe length L [mm] 45

Repeatability [cm/s] 1…5
Note on repeatability
for water 5…100 cm/s; 25 °C
Factory setting
