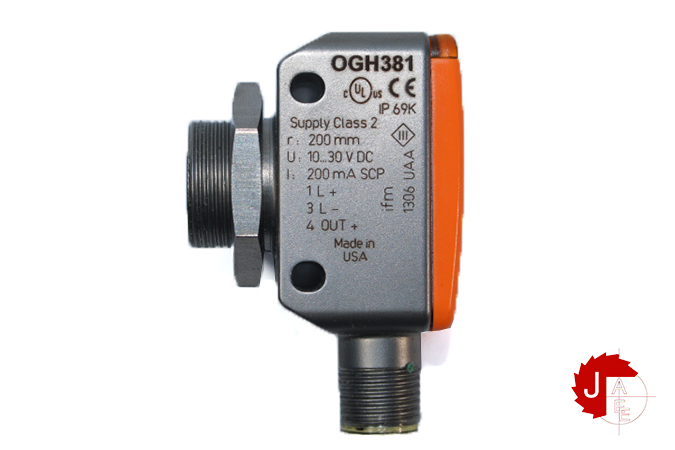

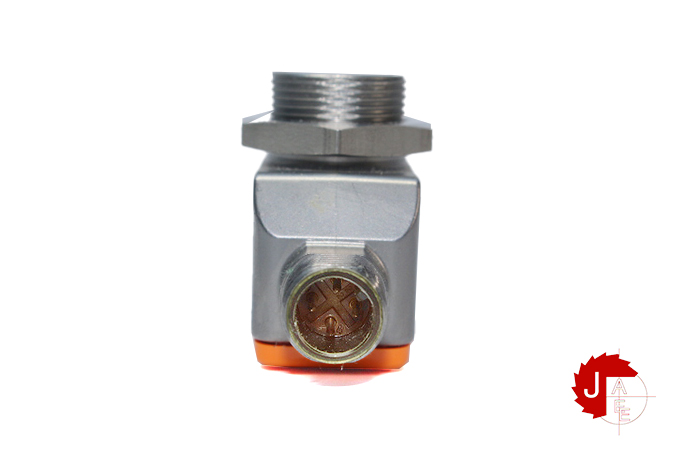

IFM electronic OGH381 Diffuse reflection sensor with background suppression OGH-HPKG/US/V4A/CUBE/200MM

IFM electronic OGH381 Diffuse reflection sensor with background suppression OGH-HPKG/US/V4A/CUBE/200MM

Manufacturer: IFM electronic
Type: Diffuse reflection sensor with background suppression
Model: OGH-HPKG/US/V4A/CUBE/200MM
Art No: OGH381

Product characteristics
Type of light red light
Housing rectangular with M18 thread
Application Special feature / Background suppression / Function principle / Diffuse reflection sensor
Electrical data
Operating voltage [V] 10…30 DC
Rated insulation voltage [V] 32
Current consumption [mA] 25

Outputs
Electrical design PNP
Output function light-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
