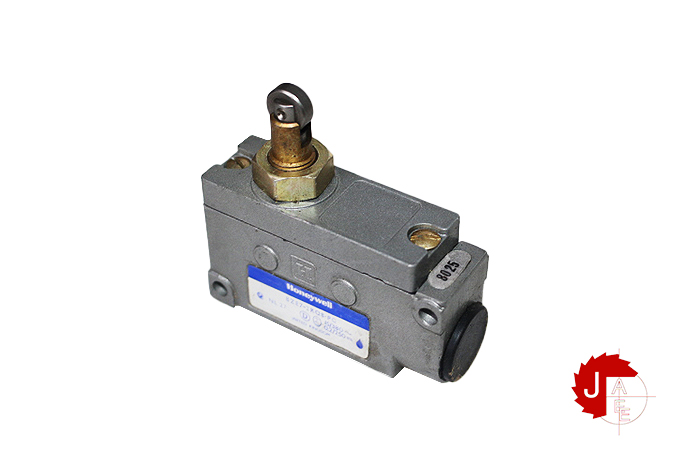

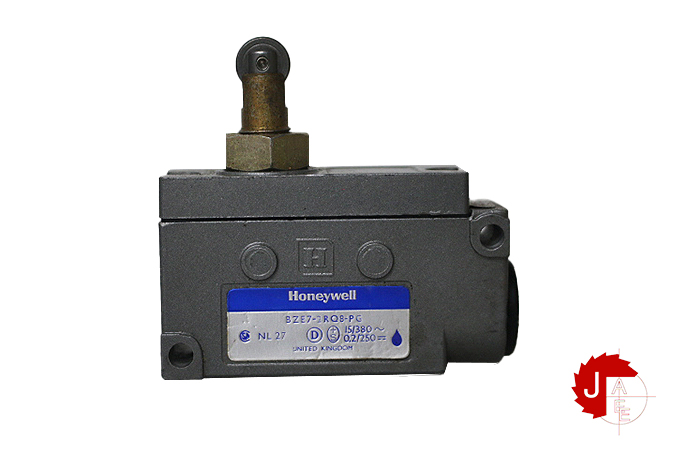

Honeywell BZE7-2RQ8-PG Limit switch

Manufacturer: Honeywell
Type: Limit switch
Model: BZE7-2RQ8-PG

Operating Force (OF) 2,50 N to 3,61 N [9 oz to 13 oz]
Release Force 1,11 N [0.25 lb] min.
Pretravel (PT) 0,38 mm [0.015 in] max.
Overtravel (OT) 5,56 mm [0.219 in] min.
Differential Travel (DT) 0,05 mm [0.002 in] max.
Product Type Enclosed Sw itches
Actuator Top Plunger
Circuitry 1NC 1NO SPDT Snap Action
Ampere Rating 15 A Ind./0.5 A Res./0.25 A Res.
Supply Voltage 125 Vac, 250 Vac, 480 Vac/125 Vdc/250 Vdc
Housing Material Aluminum Die-Cast
Termination Type PG13,5
Housing Type Split Housing, Side Mount
Series Name E7/V7
Sealing IP50
Operating Temperature -30 °C to 71 °C [-22 °F to 160 °F]
