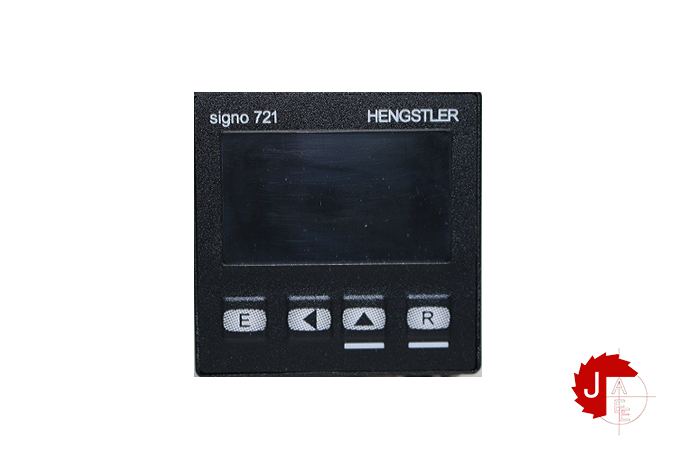

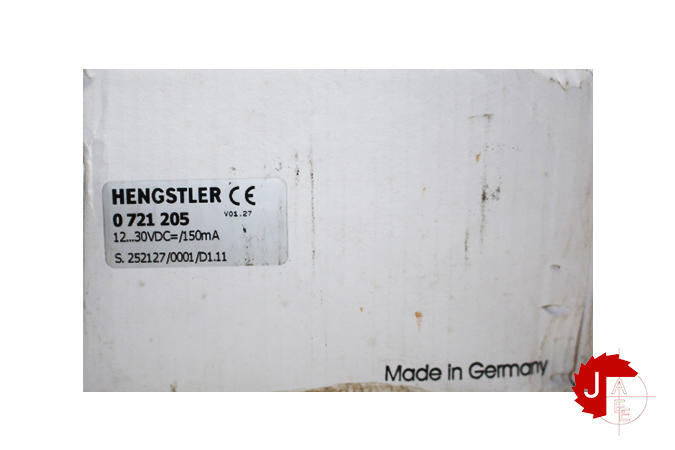

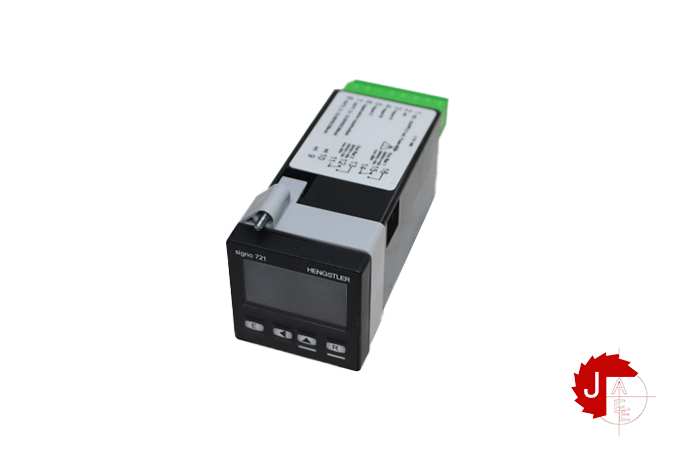

HENGSTLER signo 721 Electronic counter

Manufacturer: HENGSTLER
Type: Electronic counter
Model: signo 721

Voltage 12-30 VDC /24-240 VAC

Current Consumption [mA]
< 200 mA at 12-30 VDC reflective
< 250 mA at 12-30 VDC with backlight
<250 mA at 24 VAC
<50 mA at 115, 230 VAC
<80 mA at 100-240 VAC switching power supply

ower Consumption < 5 W…<8 W

Supply Voltage 12-30 VDC /24, 115, 230 VAC / 100-240 VAC

Count Frequency [Hz]
max. 60 kHz (TTL 20 kHz): Single-channel counting and directional input
max. 60 kHz (TTL 20 kHz): differential or totalizing operation
channel (A+B together)
max. 30 kHz (TTL 20 kHz): phase discriminator 1- or 2-fold evaluation
max. 15 kHz (TTL 15 kHz): phase discriminator 4-fold evaluation
attenuated 30 Hz
For further details, see graphic and manual.
