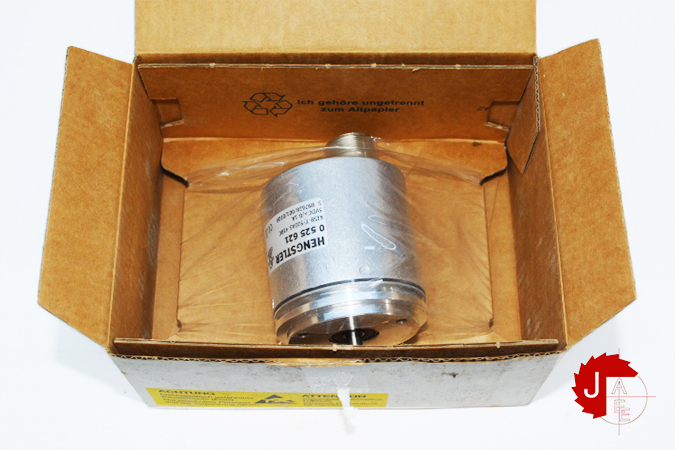

HENGSTLER RI58-T/500AS.41RC Incremental Encoder 0 525 621

HENGSTLER RI58-T/500AS.41RC Incremental Encoder 0 525 621

Manufacturer: HENGSTLER
Type: Incremental Encoder
Model: RI58-T/500AS.41RC

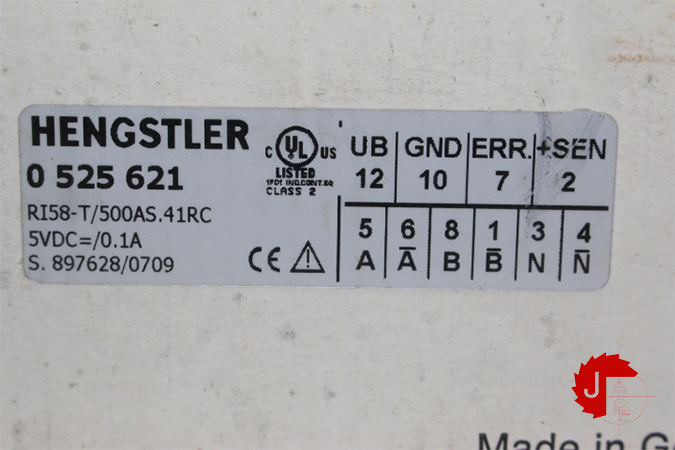

Part No: 0 525 621

NUMBER OF PULSES: 500
Housing diameter: 58 mm
Shaft diameter: 6 mm
Flange (Mounting of housing) Synchro flange, Clamping flange, Square flange, Synchro clamping flange
Protection class shaft input (EN 60529) IP64 or IP67 Protection class housing (EN 60529) IP65 or IP67
Shaft load axial / radial Ø 6 mm / 6,35 mm: 20 N / 40 N
Max. speed max. 10.000 U/min
Starting torque typ. ≤ 0,5 Ncm ≤ 1 Ncm (IP67)
Moment of inertia approx. 14 gcm² (Synchro flange) approx. 20 gcm² (Clamping flange)
