HEIDENHAIN ROC 413 2048 27S17-58 Absolute rotary encoder 599501-05

Manufacturer: HEIDENHAIN
Type: Absolute rotary encoder

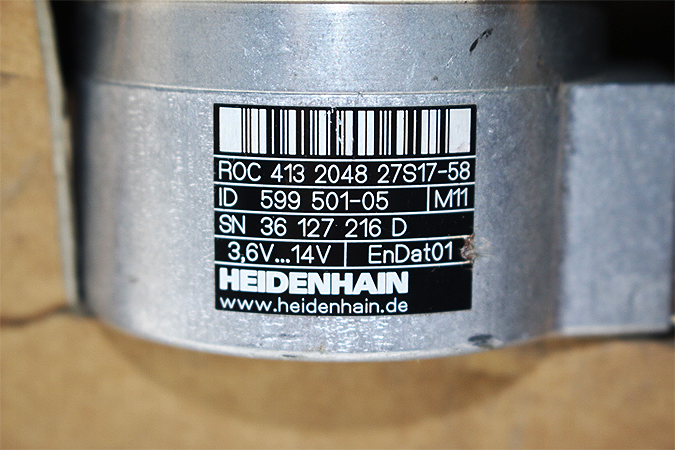

Model: ROC 413 2048 27S17-58

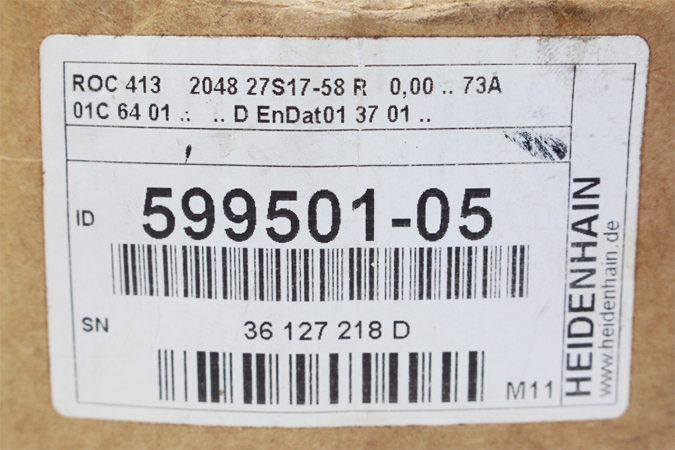

Part No: 599501-05

Output code Binary
Line count 2048
Output signal ~1Vpp
Cutoff frequency (-3 dB) 400.00 kHz
Power supply 3.6 V … 14 V
Flange version
Synchro flange Ø 58 mm, centering collar 50 mm, bolt circle Ø 42 mm, 3 x M4 Shaft: Solid shaft, diameter 6 mm, length 9.5 mm
Degree of protection IP64 (EN60529)
Operating temperature -40/+100 °C
Electrical connection Flange socket M23, male, 17-pin
