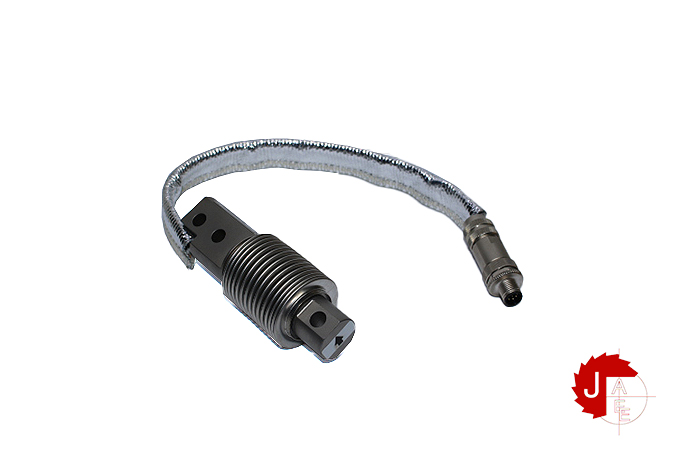

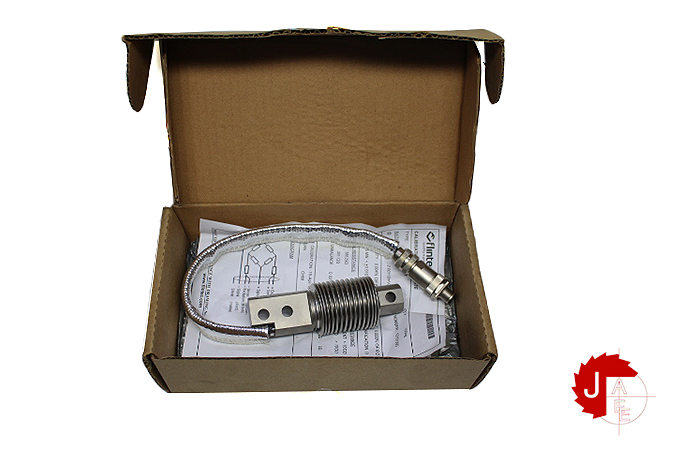

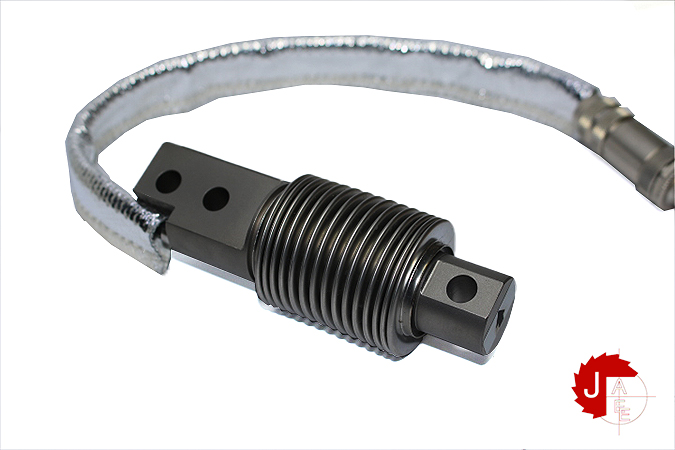

Flintec SB8-100kg C3-S Beam load cell

Manufacturer: Flintec
Type: Beam load cell

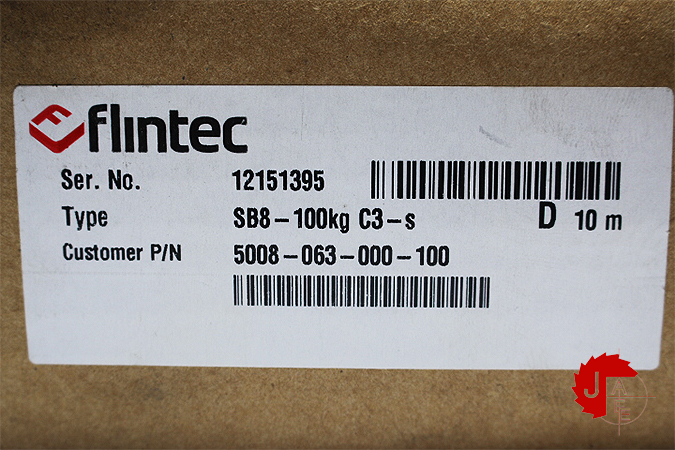

Model: SB8-100kg C3-S

Accuracy class according to OIML R60 C3
Maximum number of verification intervals (nmax) 3,000
Minimum load cell verification interval (vmin) Emax /10,000
Temperature effect on minimum dead load output (TC0) %*RO/10°C ± 0.0140
Temperature effect on sensitivity (TCRO) %*RO/10°C ± 0.0100

Zero balance %*RO ± 5 Excitation voltage V 5…15
Input resistance (RLC) Ω 380 ± 10
Output resistance (Rout) Ω 350 ± 3
Insulation resistance (100 V DC) MΩ ≥ 5,000
Safe load limit (Elim) %*Emax 200
Ultimate load %*Emax 300
Safe side load %*Emax 100
Compensated temperature range °C–10…+40
Operating temperature range °C–40…+80 (ATEX –40…+60)
